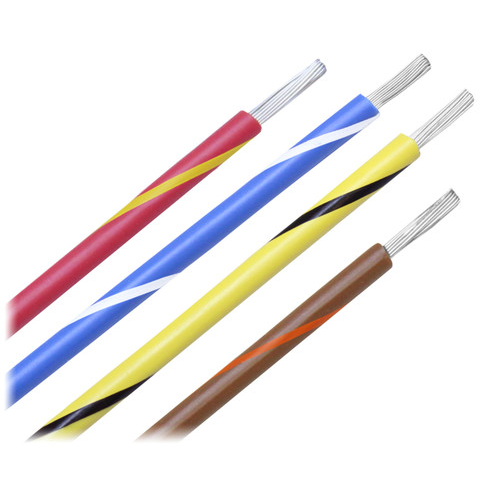

500' 16 AWG 26 Strands White Jacket Striped Marine Wire
Also Known As:
Striped Marine Wire, Stranded Wire, Tinned Copper Conductors, Color-coded insulation, Highly flexible
About:
Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of 16 AWG striped marine wire is manufactured in Sarasota FL, USA from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.
Contraction:
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
Strands:
• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183
Features:
• Stranded, Tinned copper conductors
• Highly flexible color-coded insulation
• Annealed Finely Stranded Tinned Copper ASTM b172 Class K
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
Applications:
• Point to point wiring
• Internal wiring of panels and motors
Specifications:
• AWG: 16
• Cond. Stranding: 26/.0100
• Nom. Ins. Thickness: 0.032
• Nom. O.D.: 0.125
• Nom. Circular Mils: 2600
• Part Number: WUL16WH - 500
