4" 10 AWG Jumper with Ring Terminals (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

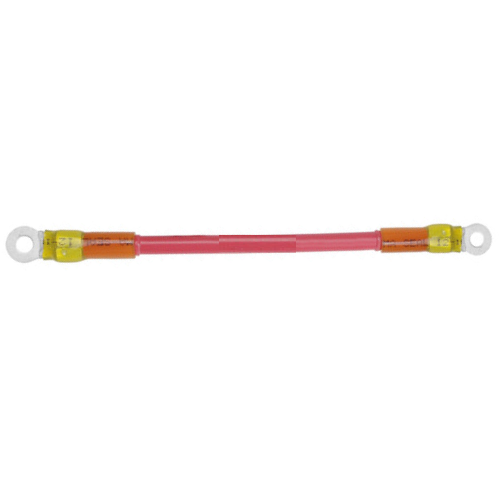

4" 10 AWG Jumper with Ring Terminals
Also Known As:
Wire Jumpers, Ring Terminals, tinned copper conductor, Highly flexible, waterproof heat shrink
About:
Wiring a piece of equipment with short wires can be frustrating and time consuming. Preparing each wire by striping and terminating can take more time than one might expect. Not to mention if you're adding heat shrink for protection. When you use wire jumpers, all of the hard work is already done for you. All there is to do is simply plug them in. There is no need to strip, terminate, heat shrink or anything else. 10 AWG jumpers with ring terminals are ideal for connecting lights from switch to switch. As an added bonus, they are also used to connect switch light grounds or to jumper from switch to breaker. How does manufacture these wire jumpers Well, first, all the wire jumpers are constructed from Type 3 Class K tinned copper. The wire is then insulated with a PVC jacket designed for flexibility and durability. After that, the wires are cut to length, and terminated properly. A waterproof heat shrink tube is then added for extra protection. All wire jumpers meet the requirements and standards of UL, ABYC and NMMA.
Construction:
• Conductor: Annealed finely stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
• Resistant to: acid, alkali, abrasion, flame, gasoline, oil and moisture
Standards:
• UL Stranded 1426 BC-5W2 (16-8 AWG)
• AWM 1015/1230 (22-10 AWG)
• MTW
• CSA: TEW
• ABYC: E-11.14 (16-8 AWG)
• Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems
Features:
• Stranded, tinned copper conductors
• Highly flexible color coded insulation
Specifications:
• Size AWG: 10
• Length: 4"
• Insulation Color: Red
• Part Number : 8 Ring Terminal - EJ10RD4-8-8-E
• Part Number : 10 Ring Terminal - EJ10RD4-10-10-E
Download PDF Spec Sheet
