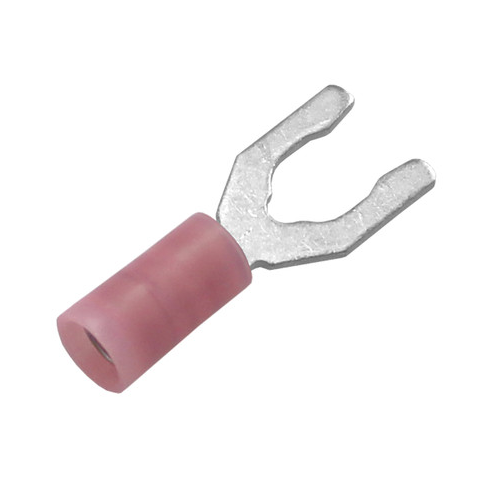

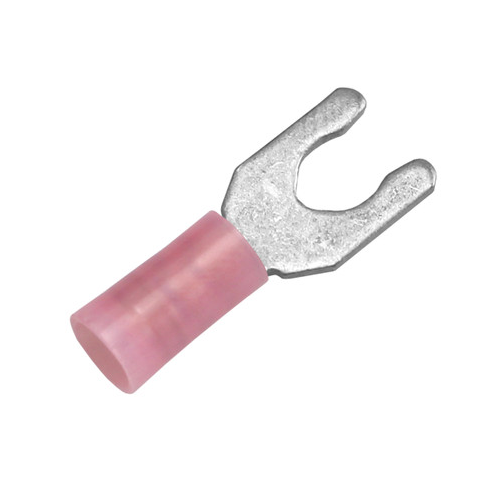

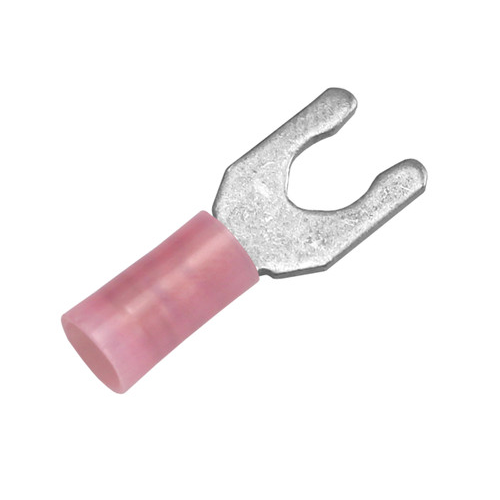

22-18 AWG Nylon Fork Terminals (Pack of 25)

Product Information

Specification

22-18 AWG Nylon Fork Terminals

Also Known As:

Fork Terminals, Terminals and Connectors, C11000 ETP Copper, Tinned Copper, Nylon Terminals

About:

Red fork terminals are for 22-18 AWG wire and come in a variety of insulation materials. Non-insulated terminals are considered the most economical. They are commonly used where special performance or installation characteristics are not needed. Nylon terminals offer rugged construction and high performance. Nylon insulated fork terminals also protect against stress and high vibration. Vinyl terminals are perfect for use where an insulated barrel is necessary. Vinyl terminals have an insulation sleeve of color-coded PVC. A sleeve that is permanently tapered to the barrel. Heat shrink fork terminals protect against the elements in the harsh environment. They are known for offering the best moisture protection available. The heat shrink terminals possess a heat activated adhesive liner. This liner provides a durable, environmentally sealed connection for wires between 22 AWG - 18 AWG.

Construction:

• Plating: Electrodeposited tin
• Plating: Tinned Copper (non-insulated only)
• Base material: C11000 ETP copper (nylon, vinyl, and non-insulated only)

Standards:

• UL
• CSA
• RoHS

Features:

• Available in nylon, vinyl, non-insulated or heat shrink
• Tin-plated ETP copper for corrosion resistance (nylon, vinyl, and non-insulated only)

Specifications:

• Wire Gauge: 22-18 AWG
• Terminal Type: Fork
• Insulation Types: Nylon
• Insulation Color: Red
• Base Material: Tinned Copper
• Part Number: TNF18-SLF-25
