16-14 AWG Heat Shrink Ring Terminals (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

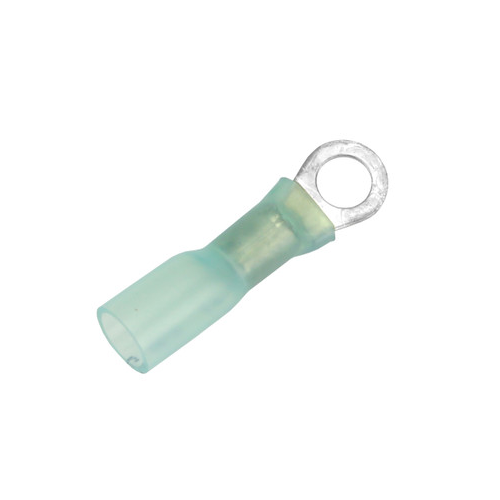

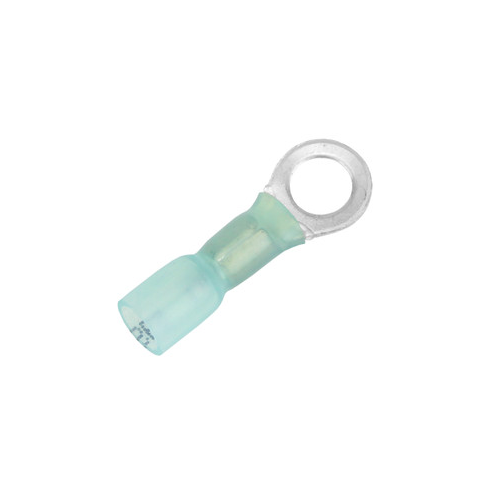

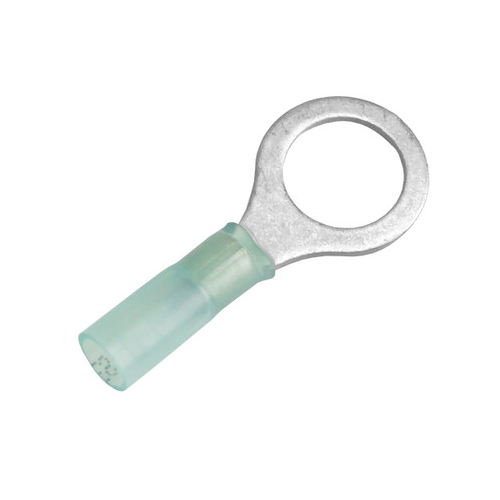

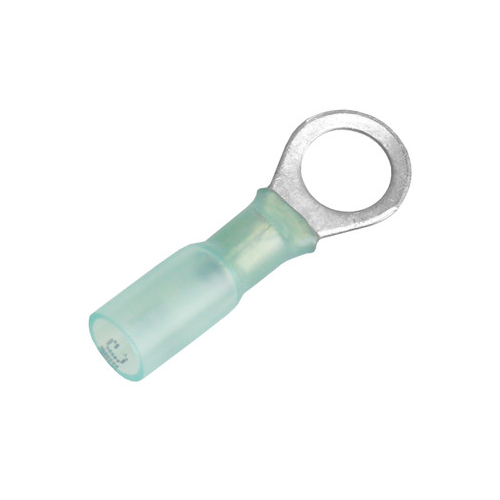

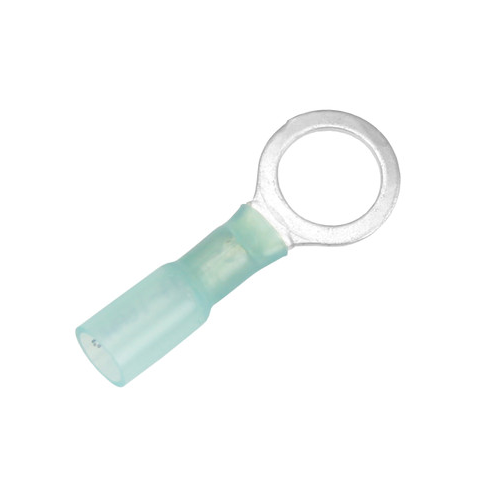

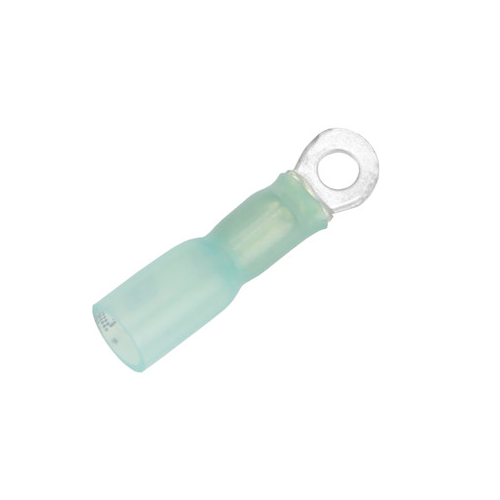

16-14 AWG Heat Shrink Ring Terminals
Also Known As:
Ring Terminals, Terminals and Connectors, Tinned Copper, Electrodeposited Tin, Blue Insulation Color
About:
Ring terminals are used to create electrical connections. By using ring terminals, you won't have to worry about the connector pulling off. The ring fits securely over a screw or stud and won't pull loose as other terminals can. Blue ring terminals are for 16-14 AWG wire. They offer long-term protection and ease of installation. 16-14 AWG ring terminals come in a variety of insulation types. Non-insulated terminals are simply the most economical. They are used in applications where special performance is not needed. Nylon ring terminals offer rugged construction making them highly durable. They are known for high-performance quality and protection against stress. Vinyl ring terminals are used where an insulated barrel is a necessity. Vinyl ring terminals feature an insulation sleeve of color-coded PVC. This sleeve is permanently tapered to the barrel. Heat shrink terminals protect against the elements in the harshest of environments. They create moisture proof barriers protecting the electrical connection. These heat shrink terminals are built with a heat activated liner. This adhesive liner provides a rugged, environmentally sealed connection for wires from 16 AWG - 14 AWG. Selecting the correct insulation can seem daunting.
Construction:
• Voltage Rating: 600-V
• Dielectric Strength: 900-V/mil
• Vol. Resistivity: 1015 Ohm-cm3
• Operating Temp: -55 °C - 125 °C
• Shrink Ratio: Approx. 3:1 at 135 °C
Standards:
• UL
• CSA
• RoHS
• ELV (nylon, vinyl, and non-insulated only)
Features:
• Provides strain relief
• Added vibration protection in rugged environments
• Protects terminations from water, condensation, salt spray and corrosion
Specifications:
• Wire Gauge: 16-14 AWG
• Insulation Types: Heat Shrink
• Insulation Color: Blue
• Base Material: Tinned Copper
• Voltage Rating: 600-V
• Part Number: TE14-R-25
Download PDF Spec Sheet
