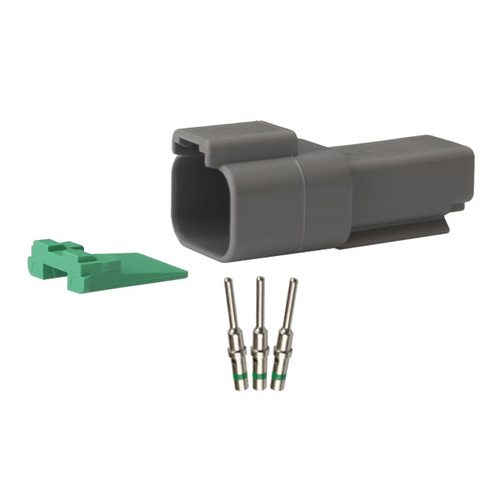

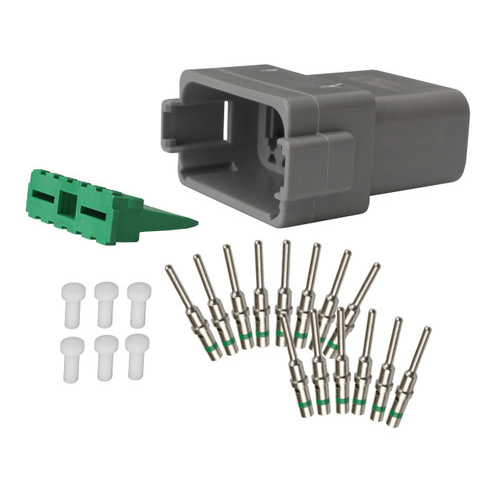

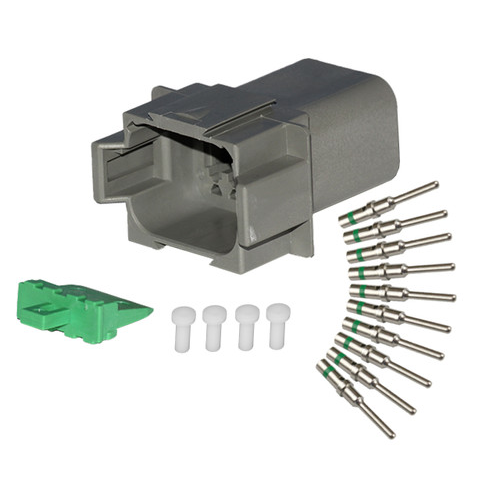

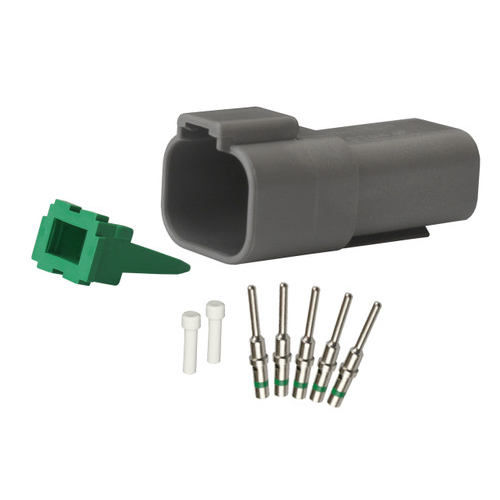

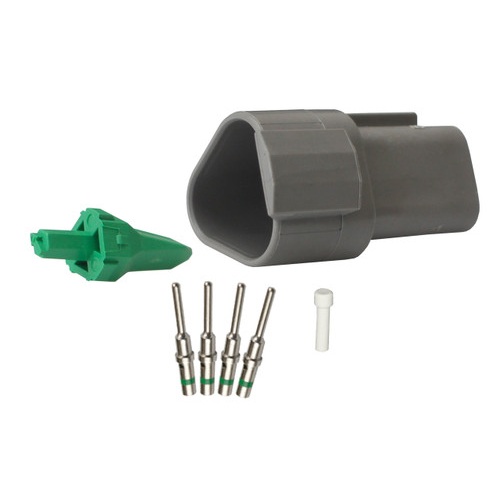

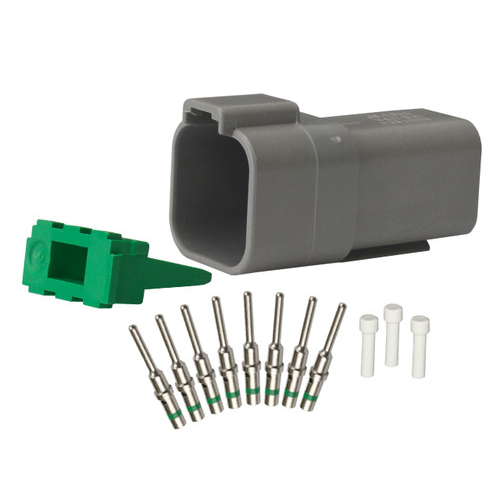

14 AWG DT Receptacle Repair Pack With Contacts
Also Known As:
DT Series, Receptacle Repair Pack, Glass Fiber, Rectangular Receptacle, Plastic Reinforced, Cavity Plugs
About:
DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple size 16 contacts (18-14 AWG) each with 13 amp continuous capacity, within a single shell.
Construction:
• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand insertable and removable contacts
Standards:
• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized
Features:
• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits
Applications:
• Wire to wire applications
• Enclosed connectors offer field proven reliability and rugged quality
Specifications:
• Contact Size: 16 (13 Amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55°C to 125°C
• Housing: Rectangular Plug / Rectangular Receptacle, Plastic reinforced with glass fiber
• Part Number : TDT04-RP
