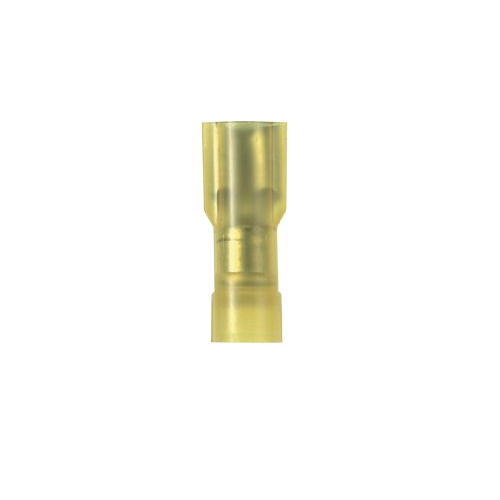

12-10 AWG Pan-Term Female Disconnect Nylon Insulated DNF10-250FIB-D (Pack of 500)

Product Information

Specification

About:

The DNF10-250FIB-D is a Pan-Term Female Disconnect terminal, designed to cater to wire terminations within the 12-10 AWG range. Featuring nylon insulation, this terminal provides an added layer of protection against electrical anomalies while maintaining insulation resistance. With a pack size of 500, it's an ideal choice for medium to large scale projects or applications.

Also Known As:

• Female Quick Disconnect
• Female Spade Terminal
• Nylon Crimp Terminal

Common Applications:

• Electrical circuits in industrial machinery.
• Large household appliances such as ovens and refrigerators.
• Automotive electrical systems, especially in larger vehicles or systems with higher power demands.
• Power distribution units in commercial settings.
• Commercial HVAC systems.

Standards:

• UL (Underwriters Laboratories) safety standards.
• RoHS (Restriction of Hazardous Substances) compliance.
• CE markings, signifying alignment with European standards.

Construction:

• Crimp Barrel: This is the part where the wire is introduced and subsequently crimped, creating a secure bond between the wire and the terminal.

• Insulation: Composed of nylon, which not only provides electrical insulation but also shields the connection from external elements.

• Terminal Body: Primarily made of tinned or plated brass or copper to ensure efficient electrical conduction.

Features:

• Tailored for Varied Wire Range: Specifically designed for 12-10 AWG, offering versatility across a range of applications.

• Nylon Insulation: Grants electrical insulation and augments the terminal's pull-out strength.

• Quick Disconnect Design: Enables an effortless and reliable connection and disconnection process.

• Ease of Identification: The color-coding (usually yellow for 12-10 AWG) facilitates quick recognition of wire gauge compatibility.

• Robust Construction: Demonstrates resistance against common solvents, oils, and other potential corrosive substances.

Specification:
