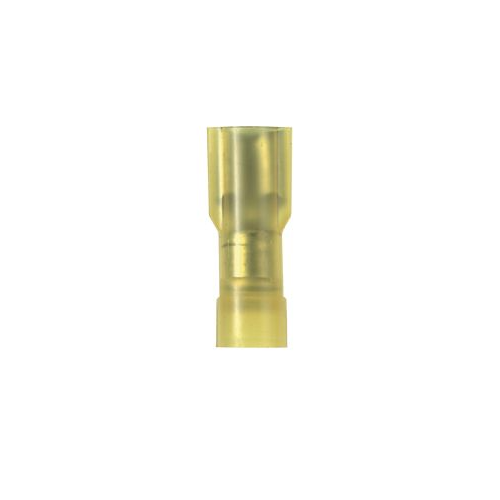

0.35 12-10 AWG Pan-Term Female Disconnect Nylon Insulated DNF10-250FIB-L (Pack of 50)

Product Information

Specification

About:

The DNF10-250FIB-L is a Pan-Term Female Disconnect terminal designed specifically for wire terminations falling within the 12-10 AWG range. With its nylon insulation, it offers an additional layer of protection against potential electrical issues and maintains insulation resistance. This model comes in a more limited quantity, with a pack containing 50 pieces, making it suitable for smaller projects or specialized applications.

Also Known As:

• Female Spade Terminal
• Female Quick Disconnect
• Nylon Crimp Terminal

Common Applications:

• Electrical circuits in industrial equipment.
• Electronic devices and domestic appliances.
• Electrical systems in automobiles.
• Electrical control panels and power distribution units.
• HVAC electrical connections.

Standards:

• RoHS (Restriction of Hazardous Substances) directives.
• UL (Underwriters Laboratories) safety standards.
• CE markings, indicating adherence to European standards.

Construction:

• Terminal Body: Typically constructed from tinned or plated brass or copper to ensure efficient electrical conduction.

• Insulation: Made of nylon, which offers electrical insulation and protects the connection from external influences.

• Crimp Barrel: The area into which the wire is introduced and crimped, ensuring a tight and secure connection between the wire and the terminal.

Features:

• Versatile Wire Range: Tailored for 12-10 AWG, offering flexibility in various applications.

• Nylon Insulation: Supplies electrical insulation and enhances pull-out strength.

• Quick Disconnect Design: Provides easy and reliable connection and disconnection.

• Identifiable: The color-coding (often yellow for 12-10 AWG) allows for swift identification of wire gauge compatibility.

• Sturdy Construction: Impervious to common solvents, oils, and other corrosive materials.

Specification:
