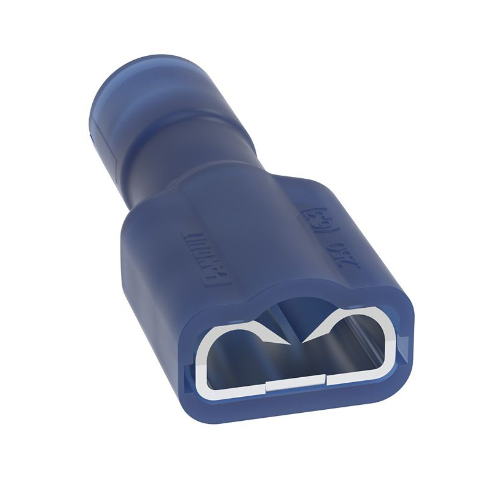

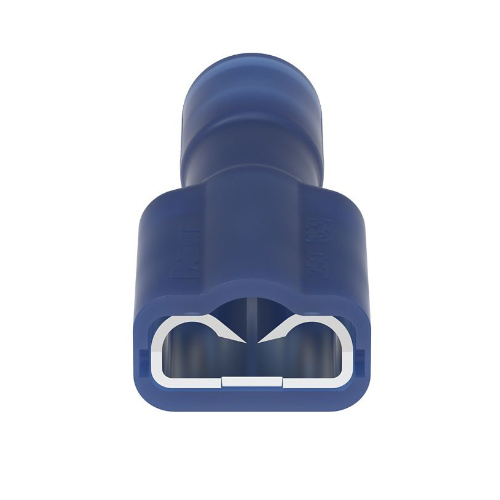

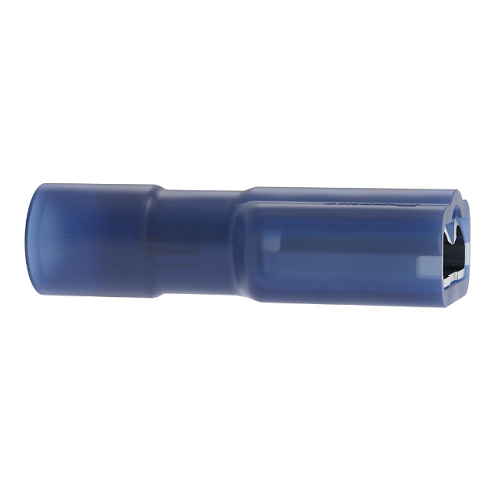

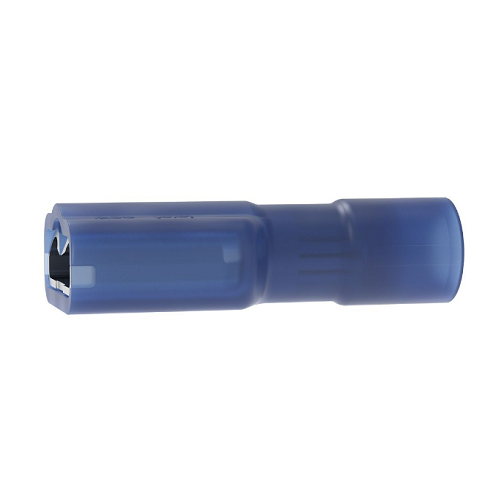

0.35 16-14 AWG Pan-Term Female Disconnect Nylon Insulated DNF14-250FIB-C (Pack of 100)

Product Information

Specification

About:

The Pan-Term Female Disconnect is a type of terminal designed for wire termination. This specific model, the DNF14-250FIB-C, is designed for wires that are within the range of 16-14 AWG (American Wire Gauge). The terminal is nylon insulated, which offers protection against short circuits and provides a certain level of insulation resistance. It comes in a pack of 100, making it suitable for bulk applications.

Also Known As:

• Female Spade Terminal
• Female Quick Disconnect
• Nylon Crimp Terminal

Common Applications:

• Industrial machinery and control panels.
• Household appliances and electronics.
• Electrical connections in automotive wiring.
• Electrical control systems and power distribution.
• HVAC systems.

Standards:

• RoHS (Restriction of Hazardous Substances) compliance.
• UL (Underwriters Laboratories) standards for safety.
• CE marking indicating conformity with European standards.

Construction:

• Terminal Body: Typically made of tinned or plated brass or copper to ensure good electrical conductivity.

• Insulation: Made of nylon which provides electrical insulation and protects the connection from environmental factors.

• Crimp Barrel: This is where the wire is inserted and crimped, ensuring a solid connection between the wire and the terminal.

Features:

• Quick Disconnect Design: Allows for easy and secure connection and disconnection.

• Nylon Insulation: Provides electrical insulation and enhances pull-out strength.

• Broad Wire Range: Suitable for 16-14 AWG, offering versatility in applications.

• Durable Construction: Resistant to common solvents, oils, and other corrosive materials.

• Easy Identification: The color-coding (typically blue for 16-14 AWG) allows for easy identification of wire gauge compatibility.

Specification:
