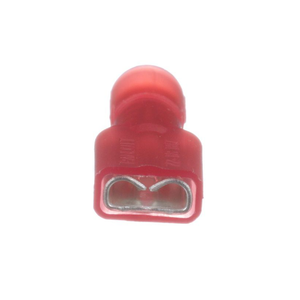

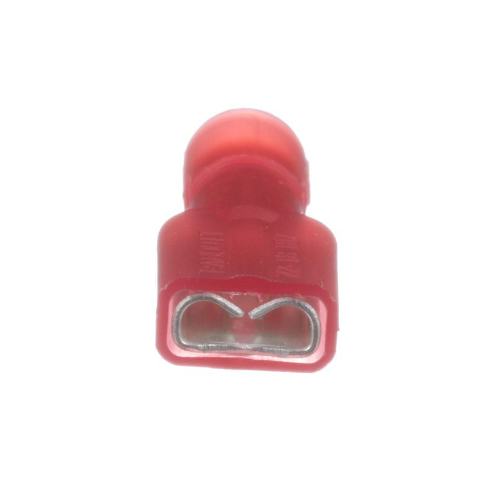

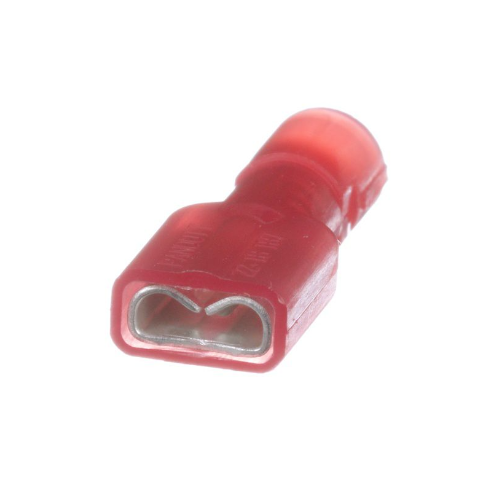

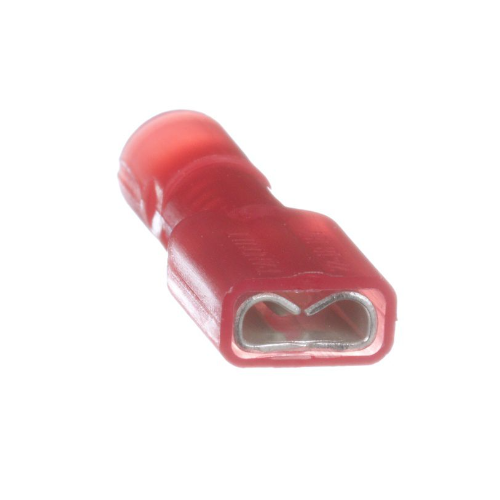

0.29 22-18 AWG Pan-Term Female Disconnect Nylon Insulated DNF18-188FIB-M (Pack of 1000)

Product Information

Specification

About:

This product refers to a type of female disconnect terminal designed for electrical connections, especially in wire-to-wire or wire-to-device applications. Given its AWG (American Wire Gauge) range of 22-18, this female disconnect is intended for small to medium-sized wire diameters.

Also Known As:

• Quick Disconnect Terminal
• Spade Terminal
• Female Slip-On Connector

Common Applications:

• Control panels and switchgear wiring
• Electronic device interconnections
• Industrial machinery wiring
• Electrical wiring in automotive systems
• Household electrical appliances

Standards:

• UL (Underwriters Laboratories)
• CSA (Canadian Standards Association)
• RoHS (Restriction of Hazardous Substances) compliance

Construction:

• Plating: The conductive body might be tin-plated to prevent corrosion and ensure long-lasting, reliable connections.

• Insulation: Made of nylon, which provides electrical insulation and a degree of mechanical protection.

• Connector Body: Typically made of brass or another conductive material, ensuring good electrical conductivity.

Features:

• Durability: Resistant to wear and tear, ensuring a long-lasting connection.

• Easy Crimping: Designed for simple and secure wire attachment, typically through a crimping tool.

• Nylon Insulation: Provides a barrier against short circuits and accidental metal contact.

• Compatibility: Fits wire gauges ranging from 22-18 AWG, offering versatility for different wiring needs.

• Wide Temperature Range: Can function effectively over a wide range of temperatures, making it suitable for various environments.
