Belden 9261 20 AWG 12 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Name: Belden 9261 20 AWG 12 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable
Brand: Belden Cable
SKU: NNC9261
Price: 22.72 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9261

Select a Gauge

Belden 9261 20 AWG 12 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $22.72 /FT
Sale price: $22.72 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

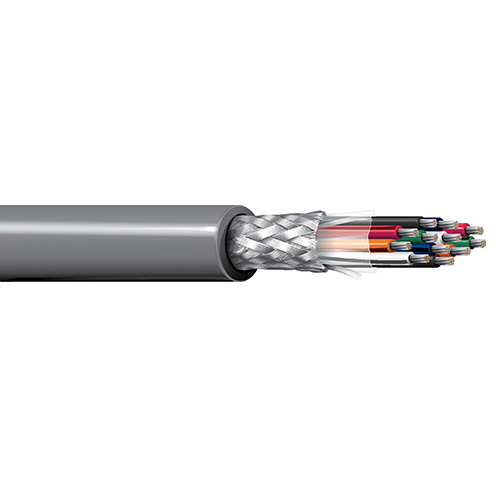

Belden 9261 20 AWG 12 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 12 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.070 in (1.8 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%
• Overall Tinned Copper Braid (85% coverage).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.396 in (10.1 mm)
• Overall Cable Diameter (Nominal): 0.396 in (10.1 mm)

Standards:

• Voltage Rating: 300 V.
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
