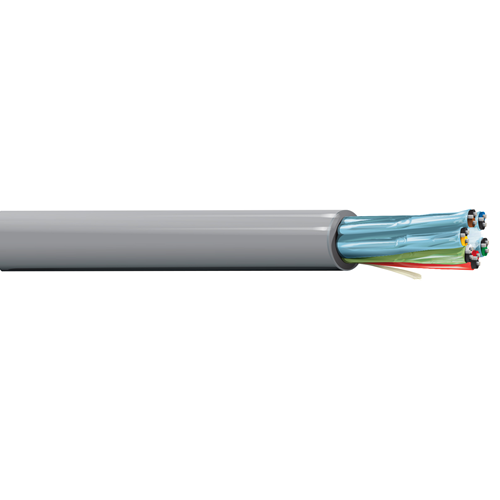

Belden 9991 24 AWG 6 Pair 7x32 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Name: Belden 9991 24 AWG 6 Pair 7x32 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Brand: Belden Cable
SKU: NNC9991
Price: 8.49 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9991

Select a Gauge

Belden 9991 24 AWG 6 Pair 7x32 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $8.49 /FT
Sale price: $8.49 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 9991 24 AWG 6 Pair 7x32 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, twisted pairs, individually shielded with Beldfoil (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC
• Individual Beldfoil (aluminum foil-polyester tape) shield on each pair with 100% coverage, and a stranded tinned copper drain wire

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.33 in

Standards:

• Voltage Rating: 300 V.
• Impedance: 60 Ohm nominal
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 6
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Cable Type: Multi-Pair, Individually Foil Shielded
• Part Number: 9991
