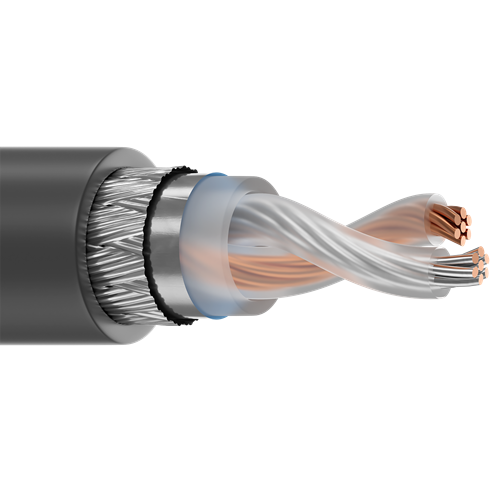

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable
Roll over image to Zoom
Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC89207
belden-multi-conductor-shielded-audio-control-and-instrumentation-cable

Select a Gauge

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$11.06 /FT
$11.06 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 89207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Description:

Twinax 100Ω, 1 Pair, 20 AWG (7x28), one tinned, one bare copper conductor, FEP insulation, FEP inner jacket, Duofoil + tinned copper braid shield 85%, FEP jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.072 in (1.8 mm), 0.201 in (5.11 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.259 in (6.58 mm)
• Overall Cable Diameter (Nominal): 0.259 in (6.58 mm)

Standards:

• Voltage Rating: 300 V (CMP).
• Impedance: 100 Ohms nominal.
• Operating Temperature Range: -70°C to +200°C.

Applications:

• Computer, Instrumentation

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper, BC - Bare Copper
• Cable Type: Twinaxial - Plenum (CMP rated).
• Part Number: 89207

Manufacturer Equivalents
Alpha Wire : Black : 9109
Anixter : Black : B89207
Belden : Black : 89207 0101000
Wirexpress :  Black : B89207

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
