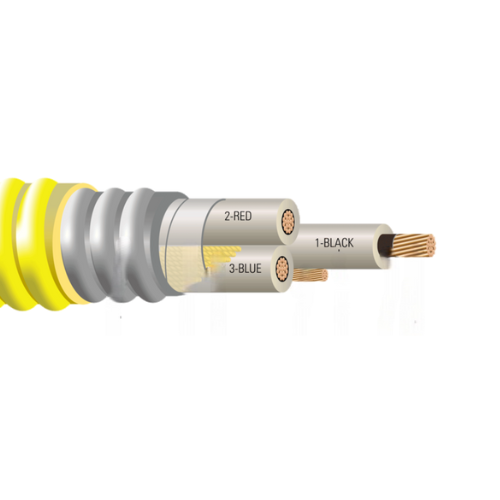

Type MV-105 Three Conductor Copper 2.4kV NLEPR Insulation 100% IL AIA Yellow PVC Jacket

Type MV-105 Three Conductor Copper 2.4kV NLEPR Insulation 100% IL AIA Yellow PVC Jacket

Application:

The 2.4KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 130°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend when UL listed. Rated at -40°C for cold bend and cold impact and marked with "LTGG" when CSA listed or dual UL/CSA listed. For uses in Class I and II, Division 2 hazardous locations per NEC Article 501 and 502.Rated for 1000 lbs./FT maximum sidewall pressure Type MV-105 Three Conductor Copper, 90 Mils Ethylene Propylene Rubber (EPR) Aluminum Interlocked Armor (AIA), Polyvinyl Chloride (PVC) Jacket Silicone Free.

Also known as:

Medium Voltage Power Cable (MV-105 Rated) 2.4kV Copper Conductor MV Power Cable MV-105 Type Cable with AIA (Aluminum Interlocked Armor) NLEPR Insulated 2.4kV Copper Power Cable Armored Medium Voltage Cable (PVC Jacketed, Yellow) 2.4kV Shielded Copper Power Cable with Interlocked Armor

Construction:

Conductor:
Class B compressed stranded bare copper per ASTM B3 and ASTM B8 (Tinned Copper per ASTM B33 optional)

Conductor Shield:
Semi-conducting cross-linked copolymer

Insulation:
 90 Mils Ethylene Propylene Rubber (EPR)

Grounding Conductor:
Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8 (Tinned Copper per ASTM B33 optional)

Filler:
Wax paper filler

Binder:
Polypropylene tape

Armor:
Aluminum Interlocked Armor (AIA)

Overall Jacket:
Polyvinyl Chloride (PVC)

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
• UL 1072 Medium-Voltage Power Cables
• UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
• ICEA S-96-659 (NEMA WC 71) 2001-5000 V Non shielded Cables
• Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j)
and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
