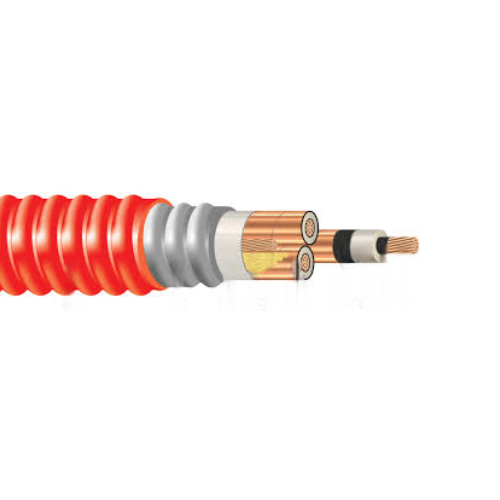

Type MV-105 Three Conductor Copper 15kV NLEPR Insulation 133% IL AIA Red LSZH-TP Jacket

Type MV-105 Three Conductor Copper 15kV NLEPR Insulation 133% IL AIA Red LSZH-TP Jacket

Application:

Southwire’s 15KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -25°C for cold bend. For uses in Class I and II, Division 2 hazardous locations per NEC Article 501 and 502.Rated for 1000 lbs./FT maximum sidewall pressure.

Also known as:

Metal Clad (MC) Cable Control Cable with Corrugated Steel Armor Welded Armor MC Cable MC-HL (Heat and Light Resistant) Cable XLPE Insulated Control Cable PVC Jacketed Control Cable 600V Rated Control Cable MC-HL Cable with Ground Corrugated Armor MC Cable

Construction:

Conductor:
Class B compressed stranded bare copper per ASTM B3 and ASTM B8 (Tinned Copper per ASTM B33 optional)

Conductor Shield:
Semi-conducting cross-linked copolymer

Insulation:
 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level

Insulation Shield:
Strippable semi-conducting cross-linked copolymer

Copper Tape Shield:
Helically wrapped 5 mil copper tape with 25% overlap

Grounding Conductor:
Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8 (Tinned Copper per ASTM B33 optional)

Filler:
Wax paper filler

Binder:
Polypropylene tape

Armor:
Aluminum Interlocked Armor (AIA)

Overall Jacket:
Thermoplastic SOLONON Low Smoke Zero Halogen (LSZH-TP)

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
• UL 1072 Medium-Voltage Power Cables
• UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
• ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
• IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
