Belden 9273 19 AWG 1 Conductor Solid RG-223 50 Ohm Mil-Spec Coax Cable

Belden 9273 19 AWG 1 Conductor Solid RG-223 50 Ohm Mil-Spec Coax Cable
Roll over image to Zoom
Belden 9273 19 AWG 1 Conductor Solid RG-223 50 Ohm Mil-Spec Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9273
belden-single-conductor-rg-6-u-fhdpe-insulation-precision-video-coax-cable

Select a Gauge

Belden 9273 19 AWG 1 Conductor Solid RG-223 50 Ohm Mil-Spec Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$7.75 /FT
$7.75 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9273 19 AWG 1 Conductor Solid RG-223 50 Ohm Mil-Spec Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-223, 19 AWG Solid Silvered Copper Conductor, PE Insulation, Double 95% Silvered Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.117 in (2.97 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage [%] 95%

• Layer 2: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage [%] 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.212 in (5.38 mm)
• Overall Cable Diameter (Nominal): 0.212 in (5.38 mm)

Applications:

• High frequency microwave and satellite, Point-to-point and point-to-multipoint wireless antenna communication

Specifications:

• Size (AWG): 19
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.034 in
• Impedance: 50 Ohm
• RG Type: 223
• Conductor Material: SC - Silvered Copper
• Part Number: 9273

Manufacturer Equivalents
Alpha Wire : 9223
Anixter : B9273
Belden : 9273 0101000
Wirexpress : B9273



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet

Reviews

Related Categories

Belden single conductor rg-6/u fhdpe insulation precision video coax cable
From $1.24/FT

Related products

Belden 1694A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable
$1.24
$1.24
Belden 1694WB 18 AWG 1 Conductor Solid RG-6 75 Ohm Serial Digital Coax Cable
$1.36
$1.36
17%off

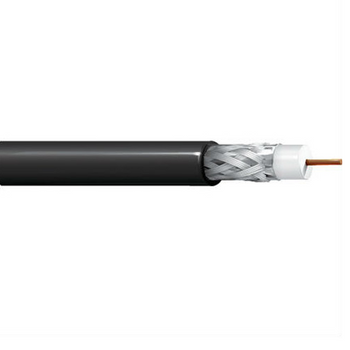

Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable
