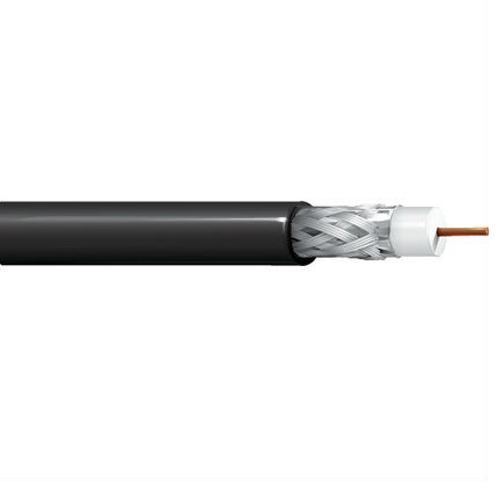

Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable

Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable
Roll over image to Zoom
Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC1695A
belden-single-conductor-rg-6-u-fhdpe-insulation-precision-video-coax-cable

Select a Gauge

Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$4.69
$3.86 /FT 17% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 1695A 18 AWG 1 Conductor Solid RG-6 75 Ohm SDI Coax Cable

Description:

75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Shield:

• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage [%] 100%

• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.229 in (5.82 mm)
• Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)

Applications:

• Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.040 in
• Impedance: 75 Ohm
• RG Type: 6
• Conductor Material: BC - Bare Copper
• Part Number: 1695A

Manufacturer Equivalents
Anixter : Red : B1695A-2
Yellow : B1695A-4
Light Blue : B1695A-6
Violet : B1695A-7
Natural : B1695A
Belden : Black : 1695A 0101000
Red : 1695A 0021000
Yellow : 1695A 0041000
Light Blue : 1695A 0061000
Violet : 1695A 0071000
Natural : 1695A 8771000
Omni Cable : Black : BEL1695A
Wirexpress : Black : B1695A
Red : B1695A-2
Yellow : B1695A-4
Light Blue : B1695A-6
Violet : B1695A-7
Natural : B1695A



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
