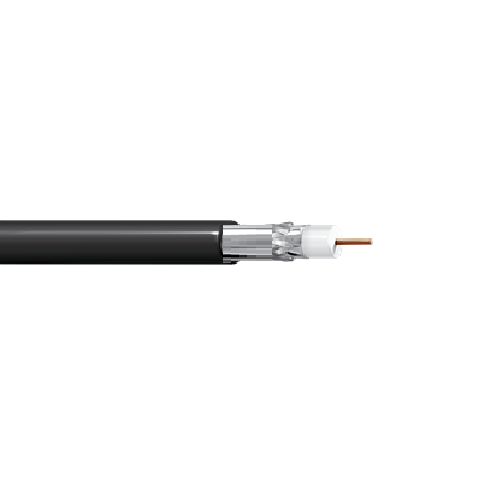

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

Name: Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable
Brand: Belden Cable
SKU: NNC9110
Price: 0.2 USD
Availability: InStock
Rating: 4.91 (8369 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9110

Select a Gauge

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.42
Sale price: $0.20 /FT 52% off

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 9110 20 AWG 1 Conductor Solid Series 59 CATV 75 Ohm Coax Cable

Description:

Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond + aluminum braid(s) shield (67% coverage), PVC jacket.

Insulation:

• Material: FPE - Foam Polyethylene
• Nominal Diameter: 0.144 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Bonded Aluminum Foil-Polyester Tape-Aluminum Foil Material, Material Trade Name Bonded Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, AL - Aluminum Material, Coverage 67%

• Layer 3: Outer Shield Type Tape, Aluminum Foil-Polyester Tape-Aluminum Foil Material, Material Trade Name Duofoil

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Overall Nominal Diameter: 0.242 in

Specifications:

• Size (AWG): 20
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Series Type: 59
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9110

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
