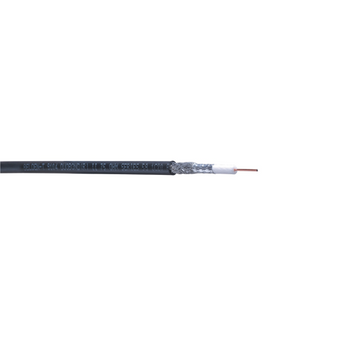

Belden 9104N 20 AWG 1 Conductor Solid RG59 75 Ohm Coax Cable

Name: Belden 9104N 20 AWG 1 Conductor Solid RG59 75 Ohm Coax Cable
Brand: Belden Cable
SKU: NNC9104N
Price: 0.19 USD
Availability: InStock
Rating: 4.91 (8347 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9104N

Select a Gauge

Belden 9104N 20 AWG 1 Conductor Solid RG59 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.19 /FT
Sale price: $0.19 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 9104N 20 AWG 1 Conductor Solid RG59 75 Ohm Coax Cable

Description:

Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond aluminum braid(s) shield (65% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.144 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duofoil Material Trade Name, Coverage 65%

• Layer 2: Outer Shield Type Braid, Coverage 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.237 in

Specifications:

• Size (AWG): 20
• Conductor Count: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• RG Type: 59
• Impedance: 75 Ohm
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9104N

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
