Belden 2413F 23 AWG 4 Pair Solid F/UTP Category 6 CMP 350MHz Horizontal Cable

Belden 2413F 23 AWG 4 Pair Solid F/UTP Category 6 CMP 350MHz Horizontal Cable
Roll over image to Zoom
Belden 2413F 23 AWG 4 Pair Solid F/UTP Category 6 CMP 350MHz Horizontal Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC2413F
cat-6-all-products

Select a Gauge

Belden 2413F 23 AWG 4 Pair Solid F/UTP Category 6 CMP 350MHz Horizontal Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.33 /FT
$1.33 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

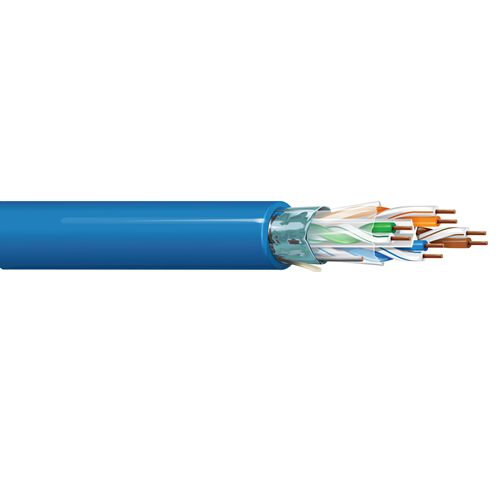

Belden 2413F 23 AWG 4 Pair Solid F/UTP Category 6 CMP 350MHz Horizontal Cable

Description:

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest PVC-LS Jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene

Outer Shield:

• Shield Type: Tape
• Material: Polyester + Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (Solid) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.285 in (7.24 mm)
• Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
• Center Member (Patented X-Spline)

Applications:

• Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments

Specifications:

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2413F

Manufacturer Equivalents
Anixter : Green : B2413F-5
Gray : B2413F-8
White : B2413F-9
Black : B2413F-0
Belden : Green : 2413F 0051000
Gray : 2413F 0081000
White : 2413F 0091000
Black : 2413F 0101000
Wirexpress : Green : B2413F-5
Gray : B2413F-8
White : B2413F-9
Black : B2413F-0



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
