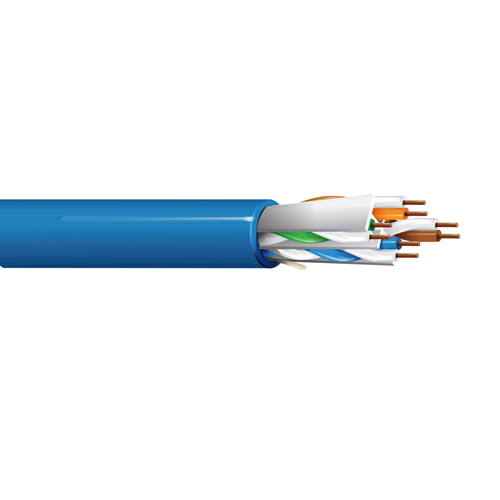

Belden 10GX13 23 AWG 4 Pair Solid U/UTP 10GX Category 6A CMP 625MHz Enhanced Horizontal Cable

Belden 10GX13 23 AWG 4 Pair Solid U/UTP 10GX Category 6A CMP 625MHz Enhanced Horizontal Cable
Roll over image to Zoom
Belden 10GX13 23 AWG 4 Pair Solid U/UTP 10GX Category 6A CMP 625MHz Enhanced Horizontal Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC10GX13
cat-6-all-products

Select a Gauge

Belden 10GX13 23 AWG 4 Pair Solid U/UTP 10GX Category 6A CMP 625MHz Enhanced Horizontal Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.80 /FT
$1.80 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 10GX13 23 AWG 4 Pair Solid U/UTP 10GX Category 6A CMP 625MHz Enhanced Horizontal Cable

Description:

10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene

Outer Jacket:

• Material:  PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.295 in (7.49 mm)
• Overall Cable Diameter (Nominal): 0.295 in (7.49 mm)
• Double H Cross-Web (Patented RoundFlex)

Applications:

• Premise Horizontal Cable, Ethernet up to 10GBASE-T, HDBaseT, PoE++, PoE+, PoE

Specifications:

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 10GX13

Manufacturer Equivalents
Anixter : Yellow : CMP-00424CDT-10-05
Purple : CMP-00424CDT-10-10
White : CMP-00424CDT-10-01
Black : CMP-00424CDT-10-02
Blue : CMP-00424CDT-10-06
Belden : Yellow : 10GX13 0041000
Purple : 10GX13 0071000
White : 10GX13 0091000
Black : 10GX13 0101000
Blue : 10GX13 D151000
Wirexpress : Yellow : CMP-00424CDT-10-05
Purple : CMP-00424CDT-10-10
White : CMP-00424CDT-10-01
Black : CMP-00424CDT-10-02
Blue : CMP-00424CDT-10-06



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
