Specification

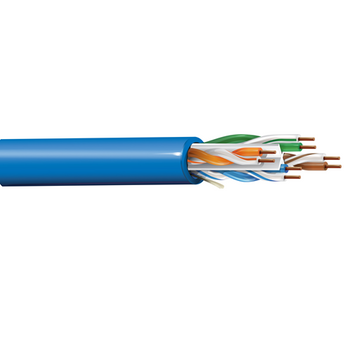

23 AWG 4P Solid BC Twisted CMP 650MHz 100BASE-TX PVC Category 6 Ethernet Cable

Allowable Ampacity for 23 AWG 4P Solid BC Twisted CMP 650MHz 100BASE-TX PVC Category 6 Ethernet Cable: 100 Amps

Applications:

Supports all Gigabit Ethernet/1000BASE-T/.IEEE 802.32ab, ATM up to 155 Mbps, 100 Mbps Fast Ethernet 100BASE-T/IEEE 802.3, ANSI.X3.263 FDDI TP-PMD, Ethernet 10BASE-T/IEEE 802.5, TI/EI, xDSL, ISDN, 550 MHz Broadband Video and standards under development such as ATM at 622 Mbps, 1.2, 2.4 and 4.8 Gbps

Also Known as:

Category 6 Cable, Ethernet Cable, 100BASE-TX Cable, Ethernet 100BASE-TX Cable, Ethernet 1000BASE-T Cable, 100BASE-VG Cable

Construction Details:

No. 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled to form a core. The core is jacketed with low smoke flame retardant PVC.
Surface Print: ETL VERIFIED CAT6 TO TIA-568C.2...3122598 CMP 23AWG 4UTP C(ETL)US ENHANCED FT6 MADE IN USA + Sequential Footage Marking

Standards:

• ANSI/TIA/EIA 568C.2 Category 6
• National Electric Code – Article 800
• UL Subject 444

Codes & Listings:

• CMP rating FT6 & FT4
• ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 6
• C(ETL)US CMP

Specification:

AWG Size: 23
Numbers of Pair: 4
Stranding: Solid
Conductor Metal: Bare Copper
Insulation: FEP
Jacket: PVC
Nominal Diameter: 0.230 in.
Capacitance: Unbalance: 330 pF/100m maximum, Mutual: 14 pF/ft nominal
Characteristic Impedance: from 0.772 - 100 MHz 100 ± 15% from 101 - 250 MHz 100 ± 22% from 251 - 650 MHz 100 ± 32%
Temperature Rating: Installation: 0°C to 50°C Operation: -20°C to 60°C
Weight: 40 lbs/1,000 feet
Part Number: 6B234UTPENH

*Data provided on this page is subject to change based on different manufacturers' variances
