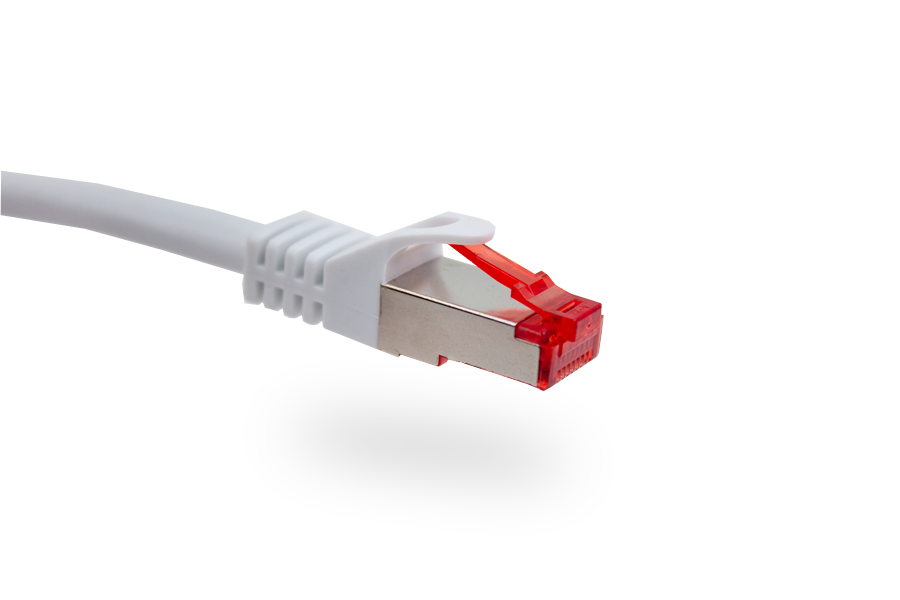

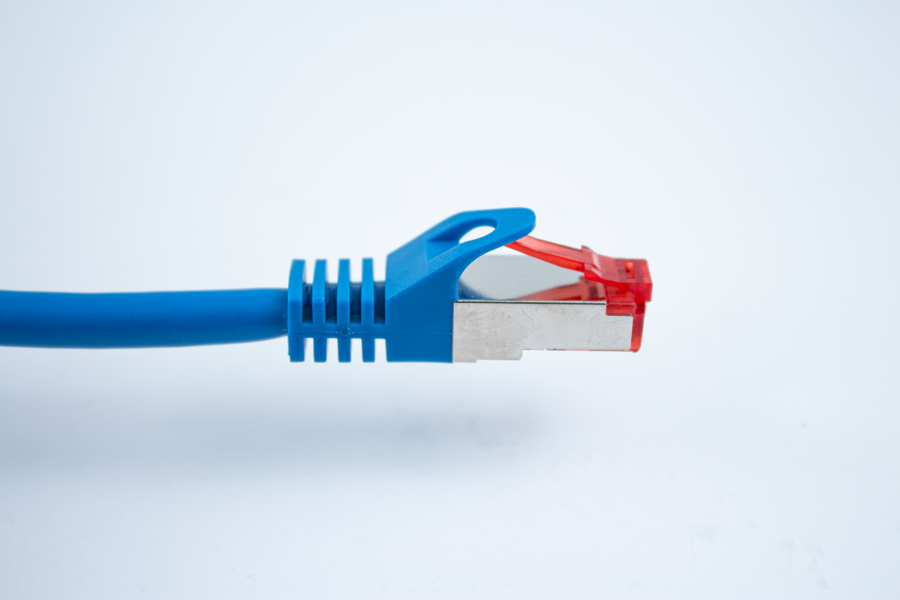

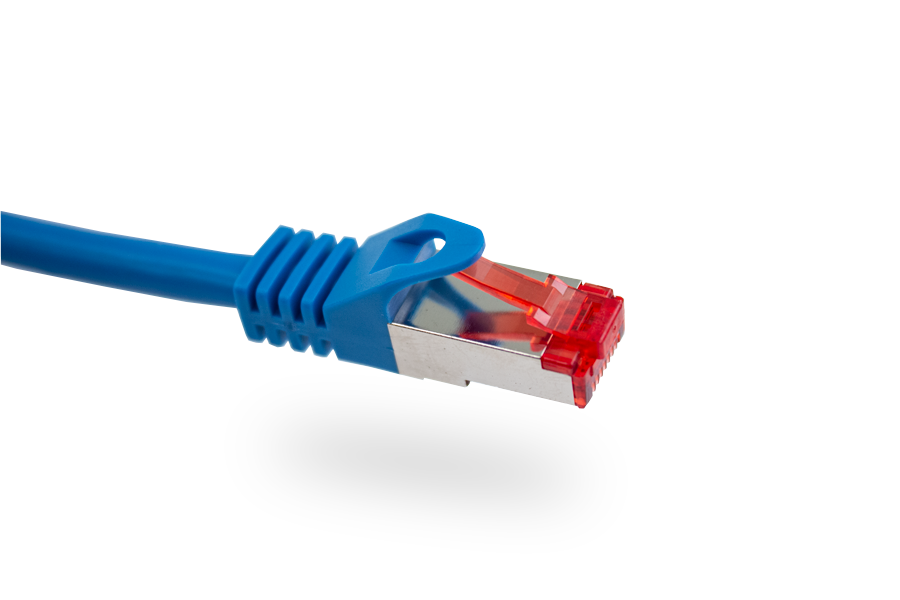

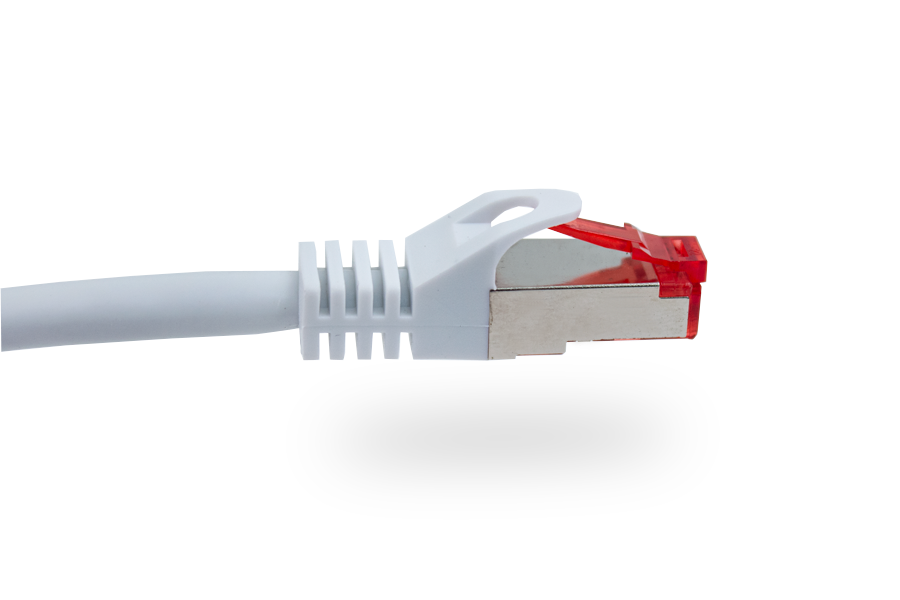

1' 26 AWG Mold Injection Shielded CAT6A Patch Cord

Product Information

Specification

1' 26 AWG Mold Injection CAT6A Patch Cord

DESCRIPTION:

Shielded Category-6A patch cord with 26AWG stranded bare copper conductors, mold-injected connectors, and a durable PVC jacket—perfect for high-speed 10G network applications.

FEATURES:

⦿ Category-6A Shielded Patch Cord with Boot & Protector
⦿ 50 Micron Gold RJ45s w/Boots on Each End
⦿ 568B Wiring Color Code
⦿ ETL Listed  RoHS Compliant
⦿ 550MHz High-Performance Patch Cord
⦿ CM Rated PVC Jacket
⦿ 26AWG 4 pair
⦿ Stranded Bare Copper Conductors
⦿ Exceeds ANSI EIA/TIA 568 B.2-10
⦿ 8P8C Gold-Plated Pins 50U”

Conductor

⦿ Size 26AWG
⦿ Construction 7/0.16±0.002mm

Insulation

⦿ Material Foam-Skin PE
⦿ Diameter 1.04±0.02mm

Jacket

⦿ Material 75A PVC UL94-V2
⦿ Outer Diameter 6.5±0.2mm

Connectors

⦿ RJ45 8P/8C
⦿ Contacts/Pins Gold Plated

Electrical Test

⦿ 100% open short & miss wire test
⦿ Insulation resistance: DC 300V 10M ohm
⦿ Impedance: 100±15 ohms

Available Colors

⦿ Yellow, Black, Red, Blue, White
