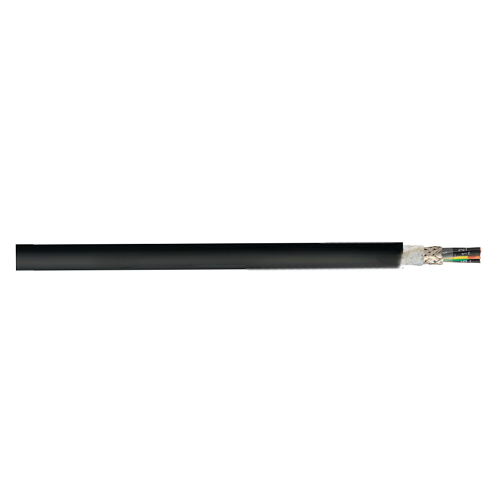

HELUCHAIN JZ-602-HF-C PVC UL/CSA Drag Chain Cable

HELUCHAIN JZ-602-HF-C PVC UL/CSA Drag Chain Cable

Applications:

For installation in dry, damp and wet rooms as well as outdoors; for applications involving free movement, no tensile stress and no forced movement guidance. Suitable for frequent lifting and bending stresses in machine and tool construction and on permanently moving
machine parts. EMC = Electromagnetic Compatibility; in order to optimum EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.

Also Known As:

HELUCHAIN JZ-602-HF-C datasheet, JZ-602-HF-C cable specifications, HELUCHAIN drag chain cable UL CSA, JZ-602-HF-C PVC control cable, Halogen-free drag chain cable HELUKABEL, JZ-602-HF-C flexible machine cable, JZ-602-HF-C EMC shielded cable, JZ-602-HF-C cable bending radius, JZ-602-HF-C UL approved control cable.

Technical Data:

PVC drag chain cable acc. to UL-Std. 758 (AWM) Style 21179, CSA-Std. C22.2 No. 210 - AWM I/II A/B

Temperature range
flexible -5°C to +80°C
fixed -40°C to +80°C

Nominal voltage
UL (AWM) AC 1000 V

Test voltage core/core
3000 V

Coupling resistance
at 30 MHz, approx. 250 Ohm/ km

Minimum bending radius
flexible 10x Outer-Ø
fixed 5x Outer-Ø

Cable Structure:

• Copper wire bare, extra finely stranded acc. to DIN VDE 0295 Class 6 / IEC 60228 Class 6
• Core insulation: PP
• Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
• G = with protective conductor GN-YE, in the outer layer
• Cores stranded in layers with optimally matched lay lengths
• Fleece wrapping between stranded layers, foil wrapping over the outer layer
• Screen: braided screen of tinned copper wires, approx. coverage 85%
• Fleece wrapping
• Outer sheath: Special-PVC acc. to UL-Std. 758 (AWM) Style 21179, CSA-Std. C22.2 No. 210
• Sheath colour: black (RAL 9005)
• Length marking: in meters

Properties:

• resistant to: UV radiation, weathering effects
• largely resistant to: acids, alkalis, at room temperature
• low adhesion
• for outdoor use
• suitable for use in drag chains
• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests:

• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
• UV-resistant acc. to DIN EN ISO 4892-2
• weather-resistant acc. to DIN EN ISO 4892-2
• certifications and approvals: EAC

Notes:

• the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
• for use in energy supply systems:
1) the assembly instructions must be observed
2) for further application parameters, please refer to the selection tables
3) for special applications, we recommend contacting us and using our data entry form for energy supply systems
