Aluminum XHHW-2 Cable 600V
Select a Gauge
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
| Product Name | Length | Price (Per FT.) | Action | |
|---|---|---|---|---|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$0.45 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$0.39 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$0.47 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$0.54 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$0.64 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$0.82 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$0.94 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$1.14 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$1.29 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$1.56 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$1.84 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$2.37 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$2.59 |
Action
|
 |
Product Name |
Length
/FT
|
Price (Per FT.)
$2.80 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$3.10 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$3.92 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$4.53 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$4.79 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$6.19 |
Action
|
|
Product Name |
Length
/FT
|
Price (Per FT.)
$6.45 |
Action
|
Aluminum XHHW-2 Cable 600V
Applications:
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.
Also Known As:
Xhhw cable, hxxw cable, rw90 cable, rw90 wire, type se cable style u type xhhw, xhhw, southwire xhhw, xhhw insulation.
Standards:
- XHHW-2 meet or exceed the following standards:
- UL standard 44
- Requirements of the National Electrical Code
- ASTM standards B 800, B 801
- Federal Specification J–C-30B
- Sunlight resistant

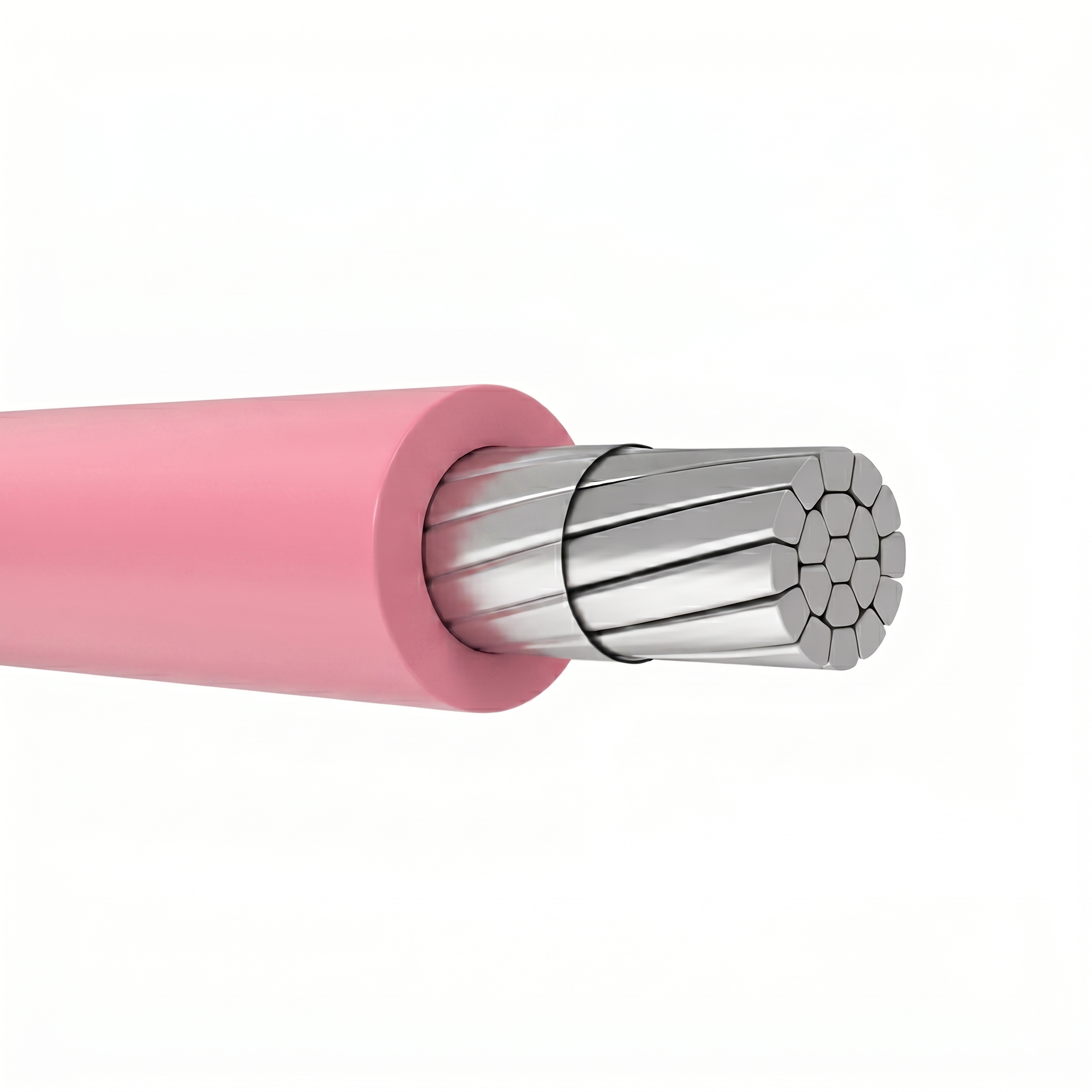

Construction
Conductors:
XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.
Insulation:
XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.
