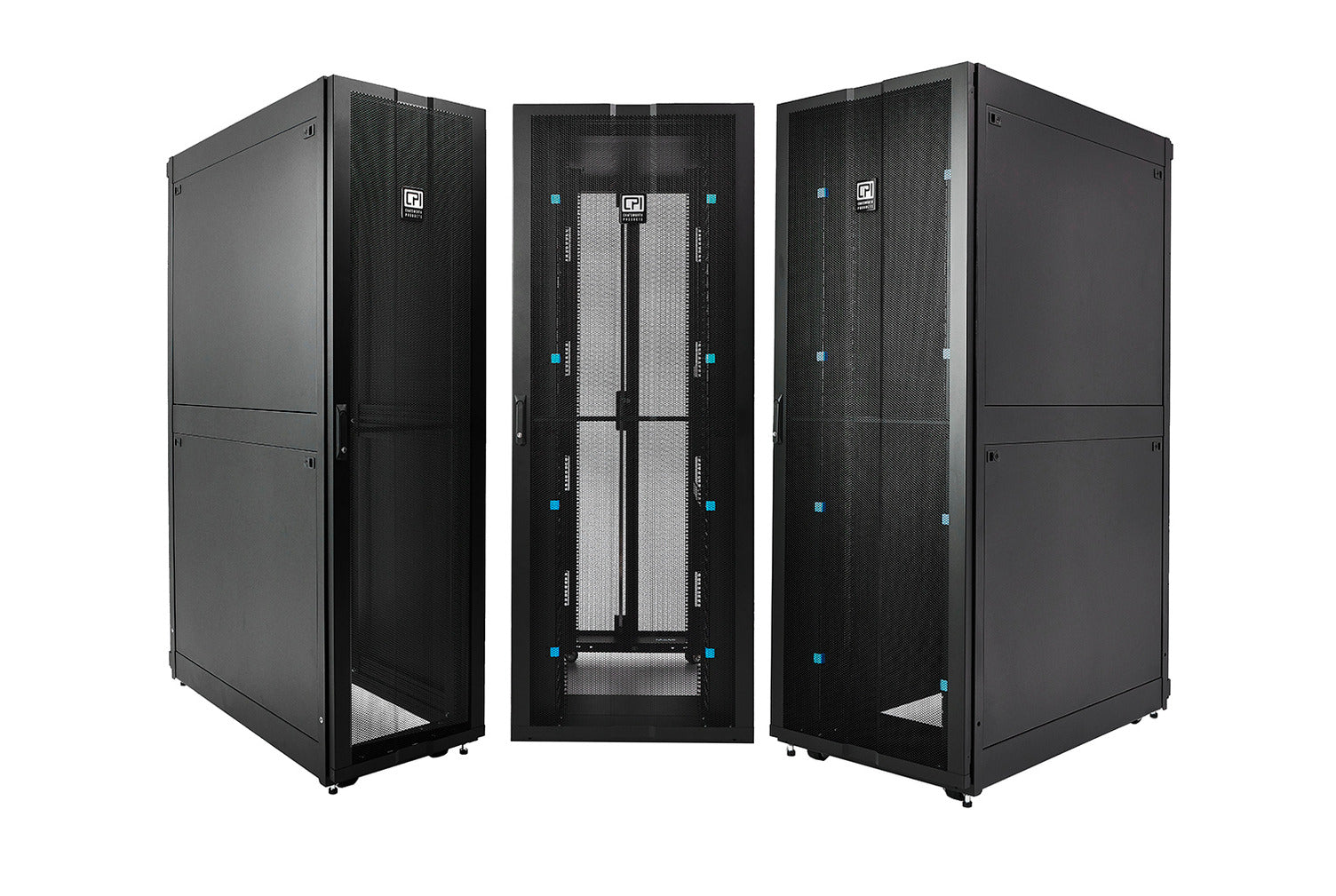

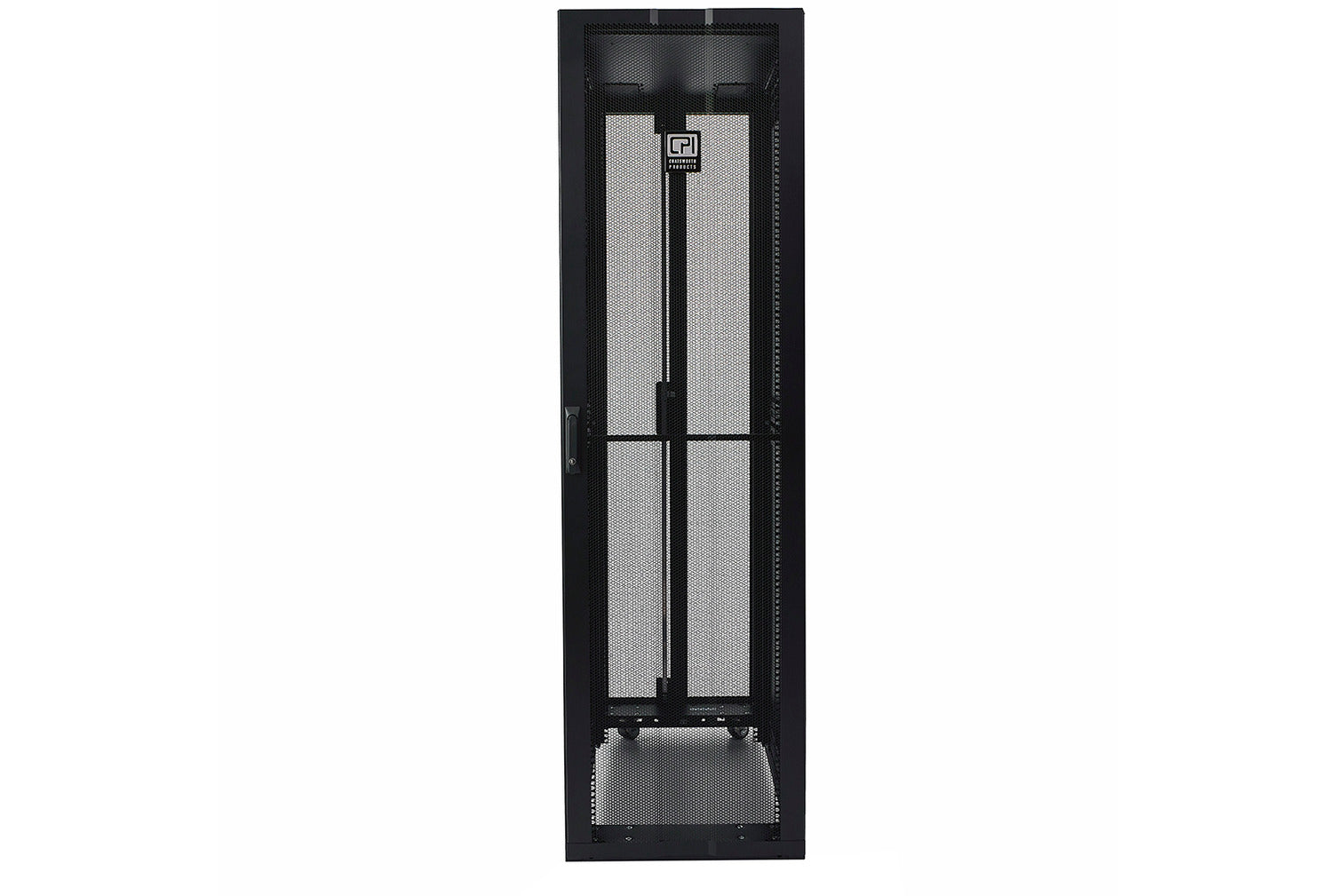

ZetaFrame Cabinet System 2017 mm x 800 mm x 1100 mm CPI ZA44-A1200-71

Product Information

Specification

Height	79.4" (2017 mm) 42U
Width	31.5" (800 mm)
Depth	43.3" (1100 mm)
Doors	Single Perforated Front/Double Perforated Rear
Top Panel	Grommet-Sealed
Side Panels	Two Side Panels
Color	Black

DESCRIPTION:

• Roll-formed, tubular, and fully welded steel four-post frame
• For indoor use only, in environmentally controlled areas

⦿ Speedy Deployment
•Customer-specified, factory-assembled solution reduces component count, packaging, and on-site assembly, saving time and delivery cost
•Order a cabinet integrated with power, cable, and thermal management preinstalled under a unique, project-specific part number
•Easy attachment and positioning of accessories allow for faster deployment and maintenance
•Optional shock pallet ensures safe delivery of racked ICT equipment
⦿ Fast Selection and Customization
•Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements
⦿ Future-Proof Strength
•Roll-formed, tubular, and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
⦿ Integrated Bonding
•Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components
⦿ Enhanced Cable Management
•ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications
⦿ Integrated Airflow Management
•Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling
