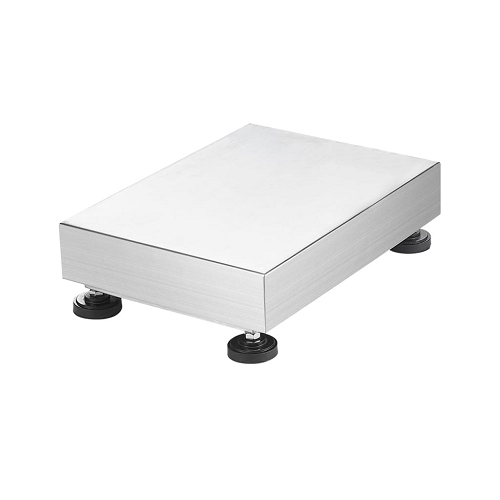

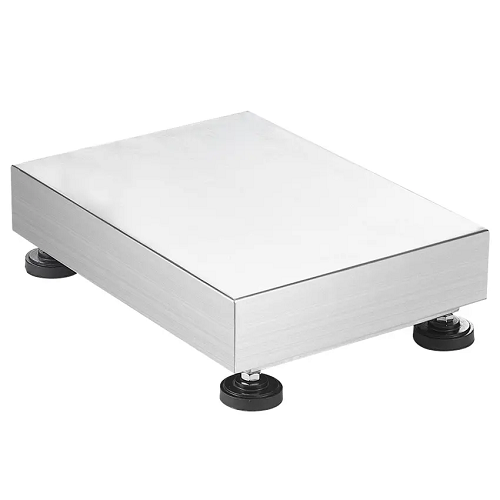

W Series Stainless Steel Platforms WB 70a
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The W series stainless steel platform scales are built for outstanding durability and performance in the toughest environments. With a high IP68 washdown rating, these rugged scales offer exceptional protection against dust and water. Perfect for industrial use, the W series is crafted from grade 304 stainless steel and is compatible with any indicator, including Adam Equipment’s wide range of options. Additional features include overload protection to safeguard internal components, a level indicator, and adjustable feet to ensure accurate setup and optimal weighing results.
Specifications:
| Type | W Platform Scales |
| Capacity | 70lb / 32kg |
| Readability | 0.005lb / 0.002kg |
| Repeatability | 5g |
| Linearity | 5g |
| Pan Size | 11.8" x15.7" / 300x400mm |
| Calibration | External calibration |
| Operating Temperature | -10° to 40°C / 14° to 104°F |
| Construction | Stainless steel |
| Overall Dimensions | 11.8"x20.1"x4.3" / 300x510x110mm |
| Part Number | WB 70A |
Features:
• Rugged stainless steel construction for ultimate durability
• Can be used with any Adam indicators
• Large, grade 304 stainless steel pan allows easy cleaning
• Overload protection helps prevent damage to internal components
• IP67-rated for protection against water and dust
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
Download PDF Spec Sheet
