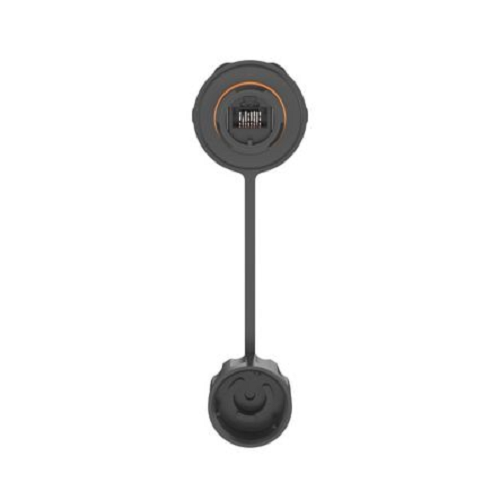

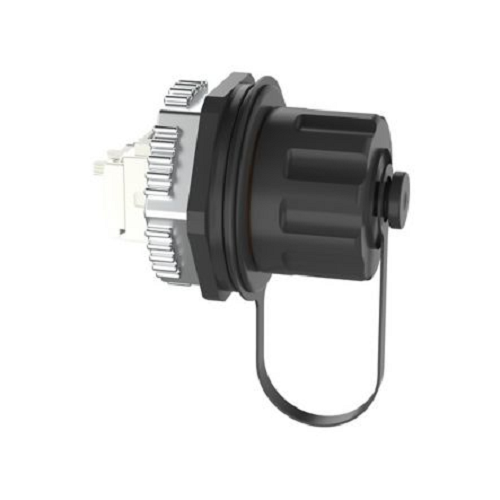

UTP Coupler Module Black IAEBH6

Product Information

Specification

About:

• A UTP (Unshielded Twisted Pair) Coupler Module is a device used in networking to connect two Ethernet cables together. It's commonly employed in situations where extending the length of an existing cable run is necessary, or when joining two cables for a direct connection.
• The primary function of a UTP Coupler Module is to extend or connect two UTP Ethernet cables. It achieves this by providing a simple, plug-and-play solution for joining cables without the need for splicing or terminating.
• UTP Coupler Modules are typically designed to work with standard Ethernet cables, commonly Cat5e, Cat6, or Cat6a cables. They are compatible with various networking devices such as routers, switches, computers, and other Ethernet-enabled devices.
• When properly installed, UTP Coupler Modules have minimal impact on network performance. They maintain the signal integrity of the connected cables, ensuring reliable data transmission without introducing significant signal loss or interference.

Also Known As:

RJ45 Coupler, Ethernet Coupler, Network Coupler, Patch Cable Coupler, Inline Coupler, Keystone Coupler, Jack Coupler, Ethernet Extender, Cable Joiner, Twisted Pair Coupler.

Specification:

Features:

• Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord.
• Designed to exceed performance requirements of the ANSI/TIA/EIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards.
• Meet industrial Ethernet specifications from ODVA, TIA, and IEC sealed RJ45 connectors.
• Utilize Panduit patented enhanced Giga-TX(TM) Termination technique for consistent, reliable terminations.
• Jack module terminates 4-pair 22 - 26 AWG solid and stranded twisted pair cable.
• Gasket and seal made of inert, chemically resistant material.
• Connector components are made of high temperature rated material.
• Tethered caps maintain seal during unmated connection.
• Compatible with leading switch manufacturers’; equipment.
