USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft

USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft
Roll over image to Zoom
USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft
Roll over image to Zoom
USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft
Roll over image to Zoom
USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft
Roll over image to Zoom

USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft

SKU: SV565UTPHDU

Select a Variant

USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft

Availability: In stock

Price:
Regular price
$913.30
Sale price
$913.30
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Quantity must be 1 or more

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Physical Characteristics
Color: Black
Material:
Steel
Product Height:
1.7 in [4.4 cm]
Product Width:
8.7 in [22 cm]
Product Depth:
5.3 in [135 mm]
Weight of Product:
2.3 lb [1.0 kg]
Part Number: SV565UTPHDU



USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft

Applications:

• Operate one or more servers from a remote location within the same building or campus
• Use for remote control of secured, physically inaccessible servers
• Can act as a thin client for power users controlling powerful rack-mounted servers as their desktop machines
• Control and monitor a remote server from a harsh environment where the PC would not function properly due to
heat/dust/etc. (factory, warehouse, mining, etc.)
• Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast
studio

Description:


The SV565UTPHDU USB HDMI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat
5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports
uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support,
HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote
display.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for
remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a
keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the
option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Features

• Uncompressed 1080p and 1920x1200 HD video extension
• Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable
• HDCP, CEC and Lip Sync pass-through support
• OS independent - no software or drivers required
• 3 USB 2.0 ports with transfer rates up to 30Mbps
• Supports connection to a single computer or cascading to an existing KVM switch
• Supports most combo keyboard and mouse sets (including Wireless)

    Hardware:

    Warranty: 2 years
    • Audio:
    No
    • KVM Ports:
    1
    • PC Interface:
    USB
    • PC Video Type:
    HDMI
    • Number of Monitors:
    1
       Supported
    • Rack-Mountable:
    No

    • Daisy-Chain:
    Yes

    Environmental :

    • Operating Temperature: 0C to 40C (32F to 104F)
    • Storage Temperature: -
    20C to 70C (-4F to 158F)
    • Humidity:
    20~80% RH (Non-Condensing)

    What's in the Box:

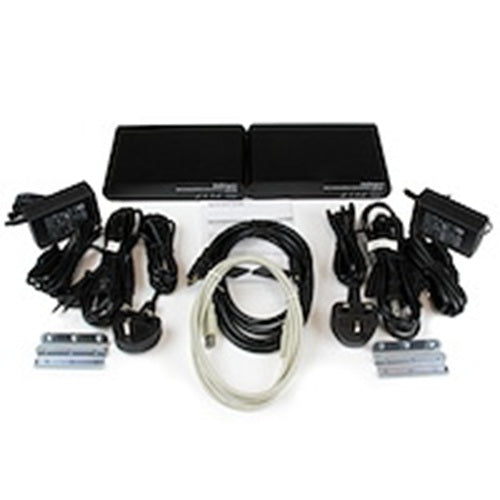

     Included in Package:  local transmitter unit remote receiver unit mounting kit HDMI cable USB cable universal power adapters (NA, EU ,UK) quick-start guide

    Download PDF Spec Sheet
