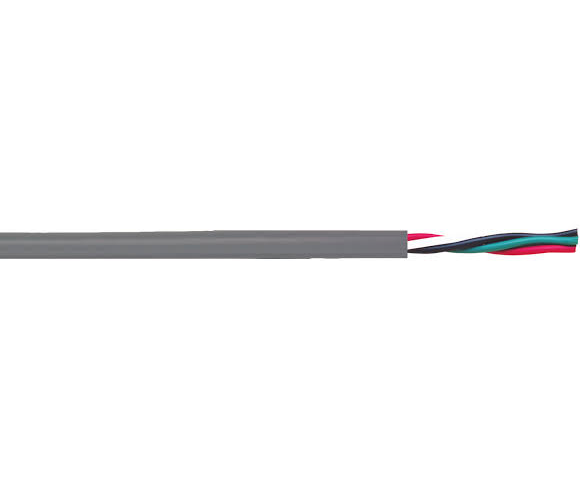

UNITRONIC 190 Lapp 602236 22 AWG 36C Unshielded Flexible Industrial Signal And Control Cable 300V

Name: UNITRONIC 190 Lapp 602236 22 AWG 36C Unshielded Flexible Industrial Signal And Control Cable 300V
Brand: Nassau National Cable
SKU: Lapp 602236
Availability: InStock
Rating: 4.91 (8309 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: Lapp 602236

Select a Gauge

UNITRONIC 190 Lapp 602236 22 AWG 36C Unshielded Flexible Industrial Signal And Control Cable 300V

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

UNITRONIC 190 Lapp 602236 22 AWG 36C Unshielded Flexible Industrial Signal And Control Cable 300V

Application:

• Extended temperature range of -40°C to 105°C
• UV-resistant jacket
• Sequential foot marking for ease of installation

Also Known As:

22 AWG 36C UNITRONIC 190 Cable, 22 AWG 36C Unshielded Cable, 22 AWG 36C Unshielded Flexible Cable, 22 AWG 36C Flexible Industrial Cable, 22 AWG 36C Industrial Signal Cable, Lapp 602236 cable

Description:

UNITRONIC® 190 is a multi-conductor cable for communication, signal, and control applications. It is designed for general-purpose installations of electrical machinery.

Conductors: Finely stranded tinned copper

Insulation: SR-PVC (Semi-Rigid Polyvinylchloride)

Jacket: Gray PVC (Polyvinylchloride)

Temperature Range: -40°C to 105°C

Standards: UL/CSA, RoHS, NFPA

Voltage: 300V

Specification:

Size: 22 AWG
Number of Conductors: 36
Nominal Outer Diameter: 0.459 Inches
Approx Weight: 0.16 lbs/ft

*Data provided on this page is subject to change based on different manufacturers' variances
