UNITRONIC 190 CY (TP) Lapp 602405TP 24 AWG 5P TP Shielded Flexible Industrial Signal And Control Cable 300V

Name: UNITRONIC 190 CY (TP) Lapp 602405TP 24 AWG 5P TP Shielded Flexible Industrial Signal And Control Cable 300V
Brand: Nassau National Cable
SKU: Lapp 602405TP
Availability: InStock
Rating: 4.91 (8283 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: Lapp 602405TP

Select a Gauge

UNITRONIC 190 CY (TP) Lapp 602405TP 24 AWG 5P TP Shielded Flexible Industrial Signal And Control Cable 300V

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

UNITRONIC 190 CY (TP) Lapp 602405TP 24 AWG 5P TP Shielded Flexible Industrial Signal And Control Cable 300V

Application:

• Extended temperature range of -40°C to 105°C
• UV-resistant jacket
• Sequential foot marking for ease of installation
• Foil tape and tinned copper braid (85% coverage)

Also Known As:

24 AWG 5P UNITRONIC 190 CY (TP) Cable, 24 AWG 5P (TP) Shielded Cable, 24 AWG 5P Shielded Flexible Cables, 24 AWG 5P Flexible Signal Cables, 24 AWG 5P Signal CY (TP) Cables, Lapp 602405TP cable

Description:

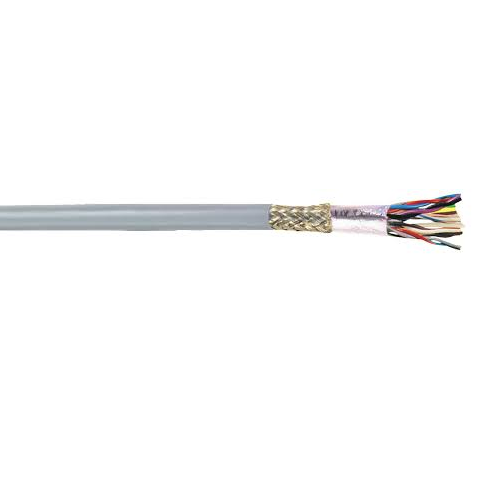

UNITRONIC® 190 is a multi-conductor cable for communication, signal, and control applications. It is designed for general-purpose installations of electrical machinery.
UNITRONIC® 190 CY has an overall foil tape & tinned copper braid for RFI & EMI protection.

Conductors: Finely stranded tinned copper

Insulation: SR-PVC (Semi-Rigid Polyvinylchloride)

Jacket: Gray PVC (Polyvinylchloride)

Temperature Range: -40°C to 105°C

Standards: UL/CSA, RoHS, NFPA

Voltage: 300V

Specification:

Size: 24 AWG
Number of Pairs: 5
Nominal Outer Diameter: 0.305 Inches
Approx Weight: 0.06 lbs/ft

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
