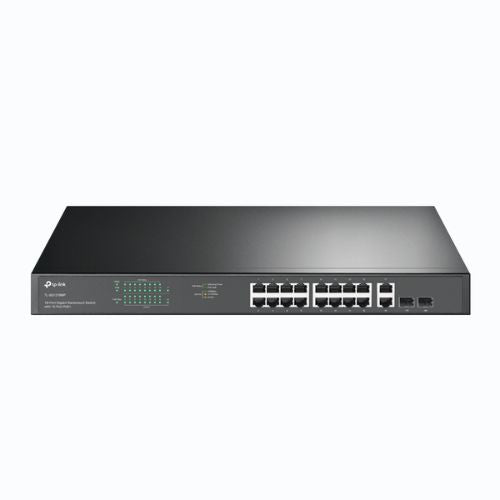

TP-Link 18-Port Gigabit Rack mount Switch with 16-Port POE TP-TL-SG1218MP

Product Information

Specification

Description

The TL-SG1218MP is an 18-port Gigabit Desktop/Rackmount Switch featuring 16 POE+ ports, making it an efficient and straightforward solution to expand your wired network. By delivering both power and data through a single Ethernet cable, it simplifies network setup and reduces clutter. With a total power budget of 250W and up to 30W per port, the TL-SG1218MP is ideal for powering high-demand devices such as wireless access points, IP cameras, and IP phones. Additionally, its energy-efficient technology helps to minimize power consumption, offering an eco-friendly networking option for your business.

Features

• Features 16 802.3af/at compliant POE+ ports, with a total POE power.
• Flexible deployment for POE-supported devices such as wireless access points (APs), IP cameras and IP phones.
• Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs.
• 18 10/100/1000 Mbps ports provide up to 36 Gbps of switching capacity.
• 10 KB Jumbo Frame improves performance of large data transfer.
• IEEE 802.3x flow control provides reliable data transfer.

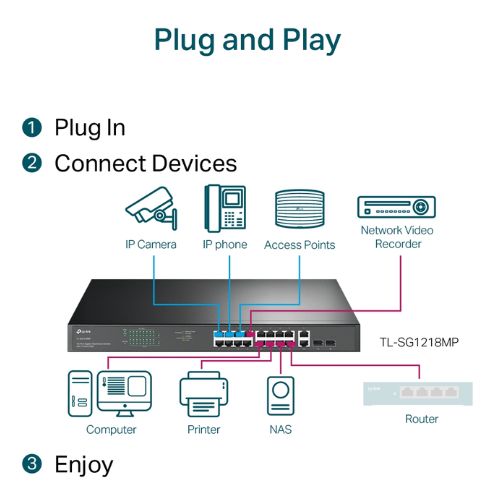

• Just plug & play; no configuration is required.
• Auto MDI/MDIX eliminates the need for crossover cables.
• Auto-negotiation intelligently adjusts for compatibility and optimal performance.

Specification

Model: TL-SG1218MP
Interfaces: 18 10/100/1000Mbps RJ45 Ports, 2 Gigabit Combo SFP Slots
POE Standard: 802.3 AF/AT
POE Ports: 16, up to 30 W Per Port
POE Power Budget: 250 W*
Switching Capacity: 36 Gbps
Packet Forwarding Rate: 26.78 Mpps
Max Address Table: 8 K
Packet Buffer: 4.1 Mbit
Jumbo Frame: 10 KB
Dimensions (W×D×H): 17.3 × 7.1 × 1.7 in.
Operating Temperature: 0°C~50°C (32°F~122°F)
Power Supply: 100-240V AC, 50/60Hz
Storage Humidity: 5%~90% RH, non-condensing
