Tool-less Cross Member Radius Drop CPI 14304-704
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Adjustable Cable Runway |
Includes roll-formed Stringers with bolted aluminum Cross Members |
| Maximum Load | 132 lb/ft (196 kg/m) when the runway is supported every 5 ft (1.5 m) |
| Assembly Includes | Two Stringers 10 Cross Members 20 M8 x 20, Taptite Thread-Forming Hexobular (TORX) Screws |
| Width | 4" (102 mm) |
Description:

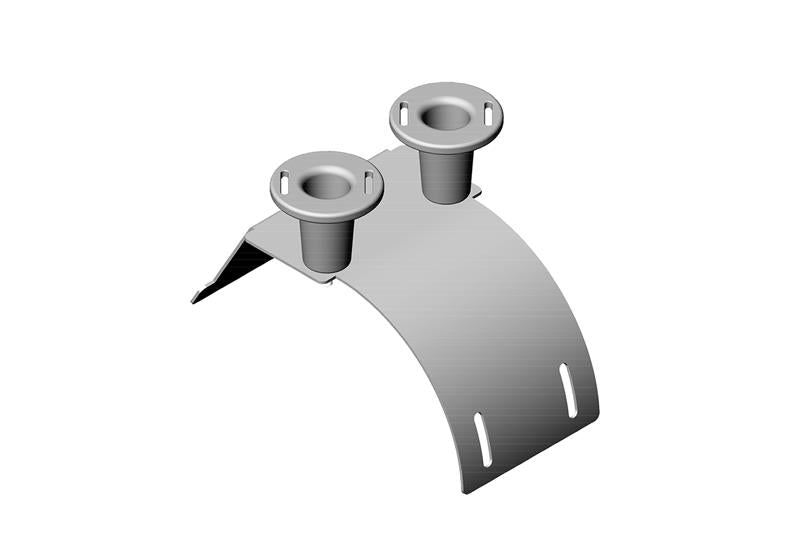

CPI’s patent-pending Tool-less Cross Member Radius Drop supports and guides cable loads as they enter and exit the runway, allowing cables to maintain proper bend radius. The Tool-less Cross Member Radius Drop is designed for compatibility with 1.5” x 3/8” (38.1 mm x 9.53 mm) Stringers and installs without the need for tools, mounting directly to the sides of the runway.
Features and Benefits:
•Tool-less Cross Member Radius Drops may be positioned over or between the Runway Cross Members
•Use Saf-T-Grips or cable ties, along with the tie-down slots to fully deploy the cable support solutions
•Provides a 3” (76.2 mm) bend radius
•Includes 1.4” H (36 mm), 1” (25 mm) diameter ABS cable spools to separate and guide cables
•Compatible with Universal, TELCO, UL Classified, and Adjustable Cable Runway
•Sold individually
•Manufactured from steel; spools are plastic
Download PDF Spec Sheet
