Thermal Transfer Vinyl Self-Laminating Label White/Clear S100X125VAA (Pack Of 4000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

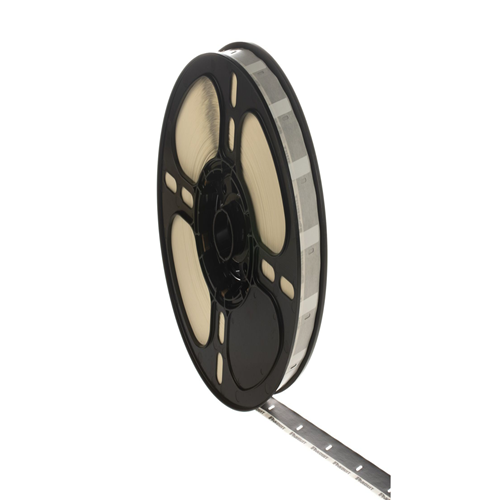

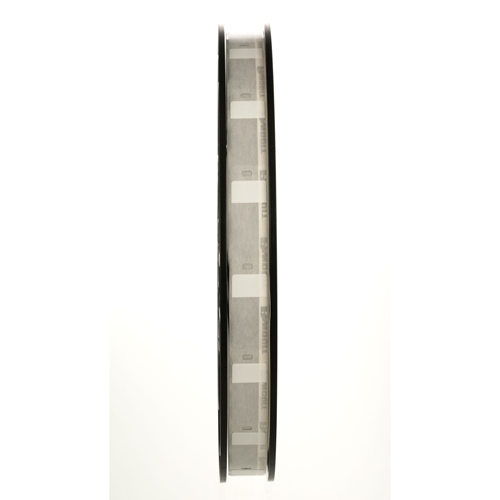

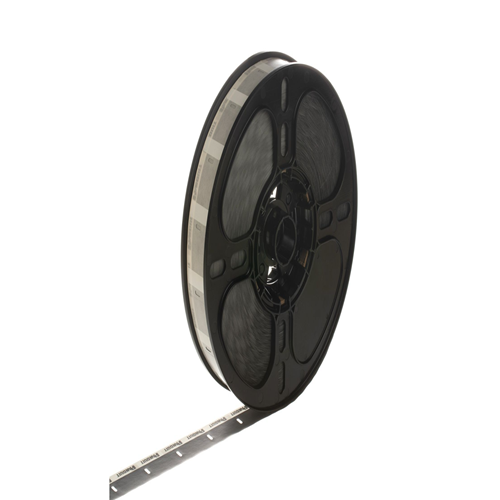

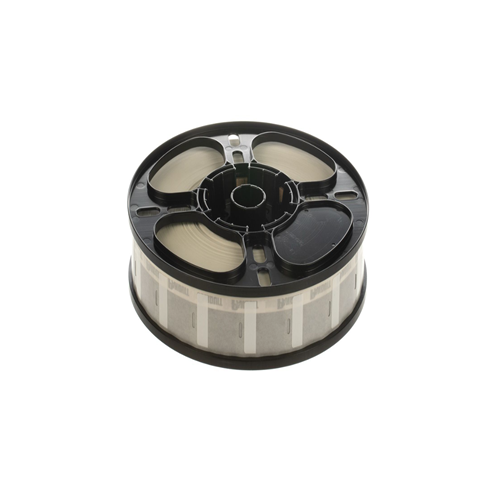

The WrapID S100X125VAA Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. 1.0" x 1.25" (25.4 x 31.8 mm). For use with PLA-100 Label Applicator.
Specification :
| Product Type | Self-Laminating Label |
| Color | White/Clear |
| Material | Vinyl |
| Printer Type | Label Applicator |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Number of Labels per Roll | 4000 |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Cable Type | Category 3 UTP |
| Print-On Area Height (In.) | 0.38 |
| Print-On Area Height (mm) | 9.7 |
| Compatible Wire Gauge (AWG) | Cat. 3 UTP / 12 - 10 AWG |
| For Use With | Label Applicator |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Cable Diameter (In.) | 0.12 |
| Minimum Cable Diameter (mm) | 3.1 |
| Note | For use with TDP printers |
Features :
• Durability: These labels are designed to withstand various environmental conditions, including moisture, chemicals, and abrasion. The self-laminating feature adds an extra protective layer that shields the printed information from damage.
• Versatility: They can be used in a wide range of applications, from industrial settings to office environments. The adhesive ensures they adhere firmly to different surfaces, including plastic, metal, and paper.
• Clarity: The white background of the label enhances visibility and readability of the printed information. This is especially important for barcodes, serial numbers, and other critical data.
Download PDF Spec Sheet
