Thermal Printer ATP2

Product Information

Specification

Description

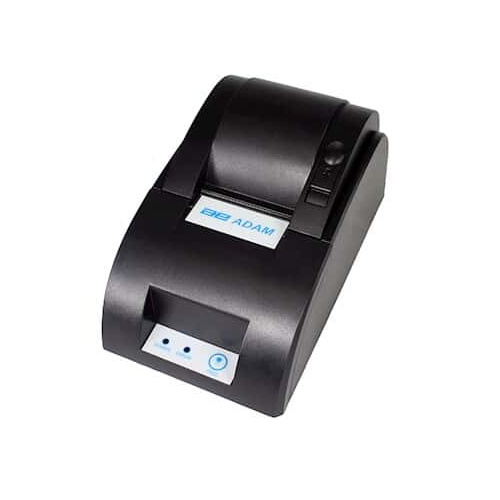

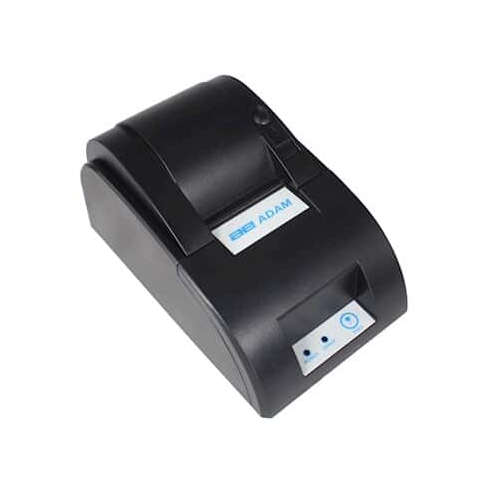

The ATP2 thermal roll printer is a versatile choice for use with most balances and scales. Designed for efficiency, it takes up minimal space on a bench or tabletop. Operating the printer is straightforward, with an on/off switch, paper feed button, and two LED indicators. Ideal for various printing applications, the ATP2 can also execute commands like tab settings, spacing, and carriage return. Users can set absolute position, toggle double-width printing, and adjust line feeds. Preconfigured to work with the default RS-232 interface on Adam balances, the ATP2 easily adapts to other equipment as well.

Features

• Direct thermal line printing

• Print density: 8 points/mm, 348 points/row

• Print speed of about 2” / 50mm per second

• Dimensions: 7.8” x 4.7” x 4.0” / 197 x 120 x 102mm (lxwxh)

• Print size 24 x 24 dot

• Column size 384 dots per line

• 2.3 ± 0.02” / 57.5 ± 0.5mm paper width
