Surface Raceway, T-70 Entrance End, White Panduit T70EEWH (pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Product Type | Channel |
| Color | White |
| Fitting Type | Entrance End |
| For Use With | T-70 Raceway |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Height (In.) | 2.86 |
| Overall Height (mm) | 72.6 |
| Overall Length (ft.) | 0.5 |
| Overall Length (m) | 0.2 |
| Overall Width (In.) | 5.71 |
| Overall Width (mm) | 145 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Part Features | T-70 entrance end fitting. |
| Part Number | T70EEWH |
Description:

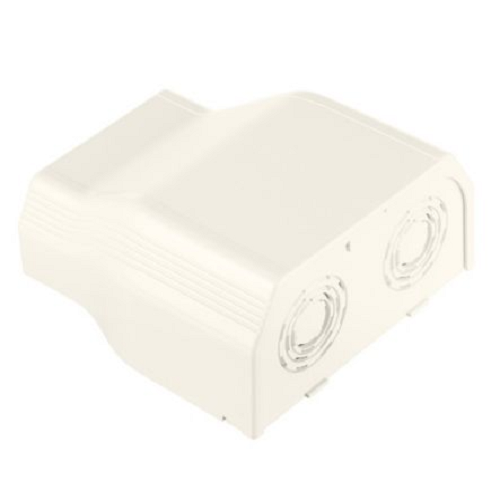

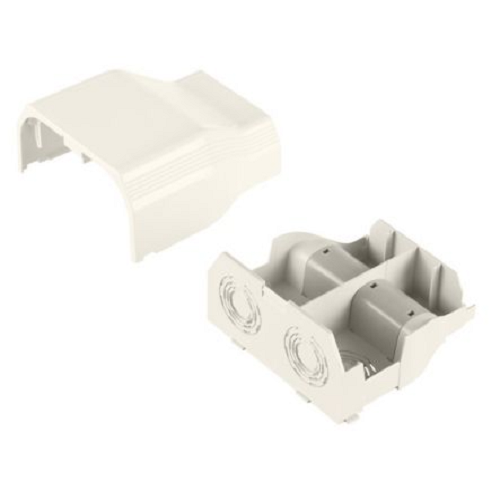

The entrance end fitting is for use with T-70 Raceway. The color is White
Application:
Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center ™ Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density.
Download PDF Spec Sheet
