Surface Raceway Off-White Right Angle Power Rated Fitting RAFX10IW-X
About:

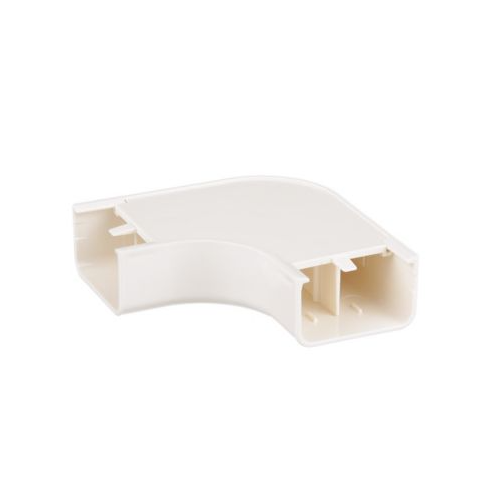

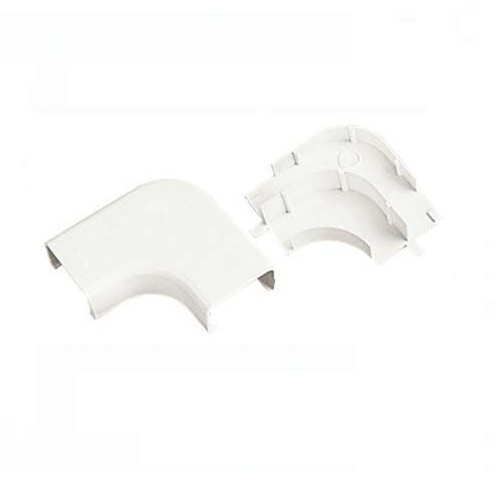

The right angle fitting is a one-piece raceway fitting designed to transition your raceway around a corner. This raceway fitting is made to be used with the LDPH10 raceway. It is a snap-on installation. It measures 2.5” in length. It is constructed with rigid PVC and is Off-White.
Also Known As:
Power Rated Fitting, Right Angle Fitting, PVC Material, Off-White Color
Application:
Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.
Specification:
| Product Type | Power Rated Fitting |
| Color | Off White |
| Fitting Type | Right Angle |
| For Use With | LDPH10, LD2P10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Overall Length (In.) | 3.18 |
| Overall Length (mm) | 80.8 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Part No. | RAFX10IW-X |
