Surface Raceway Off-White Base 8FT T70BIW8

Product Information

Specification

Specification :

Description

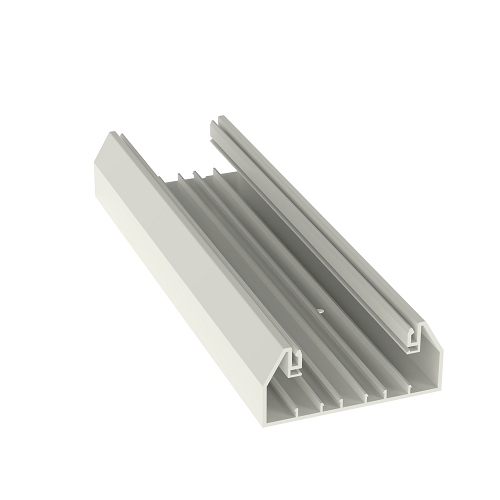

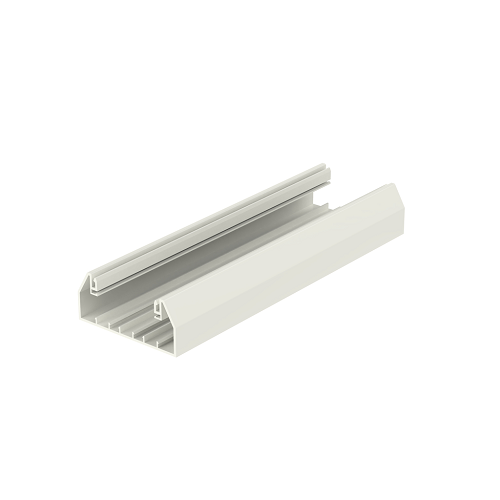

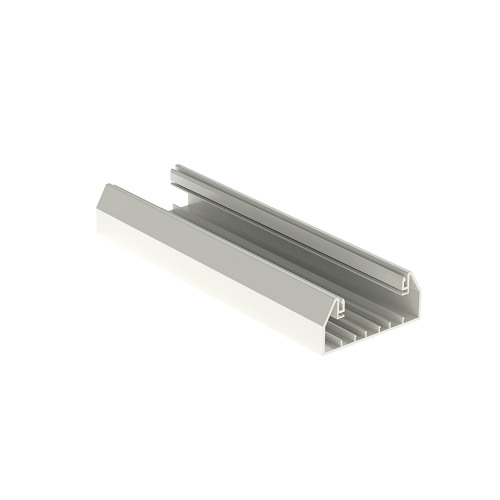

The T-70 raceway base provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-70 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 8ft and Off-White.

Application

Pan-Way T-70 Non-Metallic Surface Raceway is a multi-channel channel raceway which provides solutions for routing low voltage, fiber optic and/or power cabling along perimeter walls. T-70 raceway can mount NEMA standard screw-on faceplates or superior Pan-Way® Snap-on Faceplates directly to the channel. T-70 features the Workstation Outlet Center™ Offset Box, which provides an offset solution to maximize channel capacity and outlet density.


Features

• 1" bend radius control fittings- Cables in the raceway will satisfy the minimum 1" bend radius requirement, preventing the potential degradation of cable performance; meets TIA/EIA standard and many warranty requirements.

• Snap-on faceplates- Faceplates snap directly onto the raceway base; cabling can be quickly accessed by removing only the faceplate, requiring less labor and cost
of maintenance.

• Channel has a 70mm opening- Accepts any manufacturer’s NEMA standard snap-on or screw-on poweror communication faceplates.

• Highly tamper resistant-Very difficult for untrained personnel to enter the raceway or remove faceplates; provides maximum security for communication cabling and
maximum safety for power cabling.

• Non-metallic construction- Lightweight reduces installer fatigue; solid color throughout profile will not chip peel, rust, corrode, or scratch; easy to cut reducing the need for special cutting devices; high impact resistance; durable.

• Designer profile- Aesthetically pleasing and matches a wide variety of decors.

• Available in there standard colors- Matches a variety of colors for various applications
