StructuredGround Telecom Grd Busbars 0624 Copper Tin-Plated PANDUIT GB4B0624TPI-1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Sub Brand : | StructuredGround™ |
| Material: | Copper |
| Overall Length (In.) : | 20 |
| Overall Length (mm): | 508 |
| Overall Width (In.): | 4 |
| Overall Width (mm): | 101.6 |
| Overall Height (In.): | 3.25 |
| Overall Height (mm): | 69.9 |
| Stud Hole Size (In.): | 0.44 |
| Stud Hole Size (mm): | 11.2 |
| Finish/Coating: | Tin-Plated |
| Overall Thickness (In.): | 0.25 |
| Overall Thickness (mm): | 6.4 |
| Resistance Properties: | Corrosion-Resistant |
| Standards Met: | BICSI/TIA-607-D, cULus Listed for Grounding and Bonding Equipment |
| Application: | Telecom/Data Center |
| Product Type: | Grounding Busbar |
| Part Features: | Available with a variety of hole pattern spacing options, Made of high conductivity copper and tin-plated to inhibit corrosion, Pre-assembled with brackets and insulators attached for quick installation |
| UPC: | 07498334541 |
| Std. Pkg. Qty: | 1 |
| Std. Pkg. Volume (cf): | 0.6490 |
| Std. Ctn. Qty: | 0 |
| Std. Ctn. Volume (cf): | 0.0000 |
| Part Number: | GB4B0624TPI-1 |

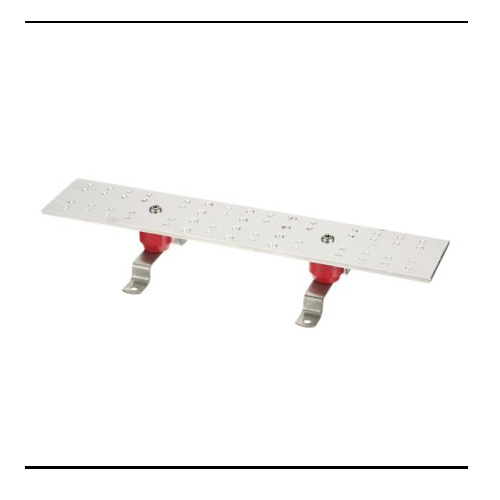

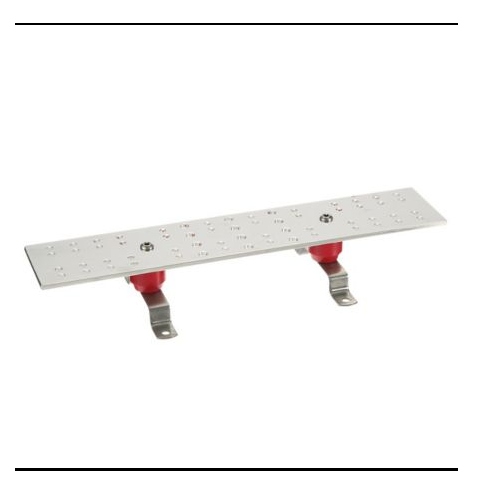

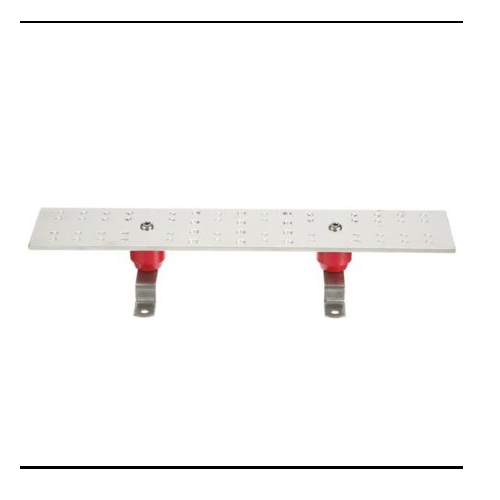

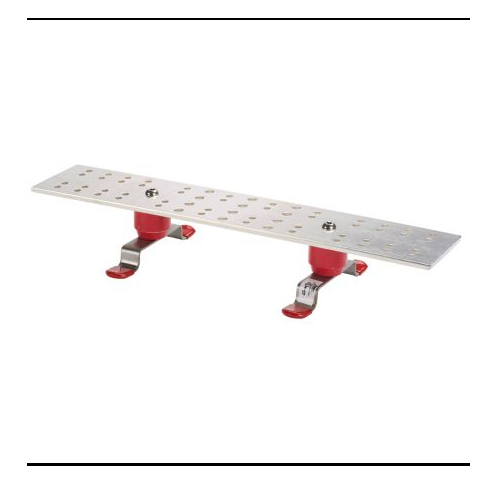

StructuredGround Telecom Grd Busbars 0624 Copper Tin-Plated PANDUIT GB4B0624TPI-1
Description:
• The GB4B0624TPI-1 Grounding Busbar meets BICSI and ANSI/TIA-607-D requirements for network systems grounding applications. Made of high conductivity copper and tin-plated to inhibit corrosion, comes pre-assembled with brackets and insulators attached for a quick installation. The insulators provide 600 V of insulation and use Panduit self-laminating laser/inkjet labels to identify busbars.
Resources:
• If product info is not displayed in your selected language, it will be coming. We will continue to improve the experience over time.
Download PDF Spec Sheet
