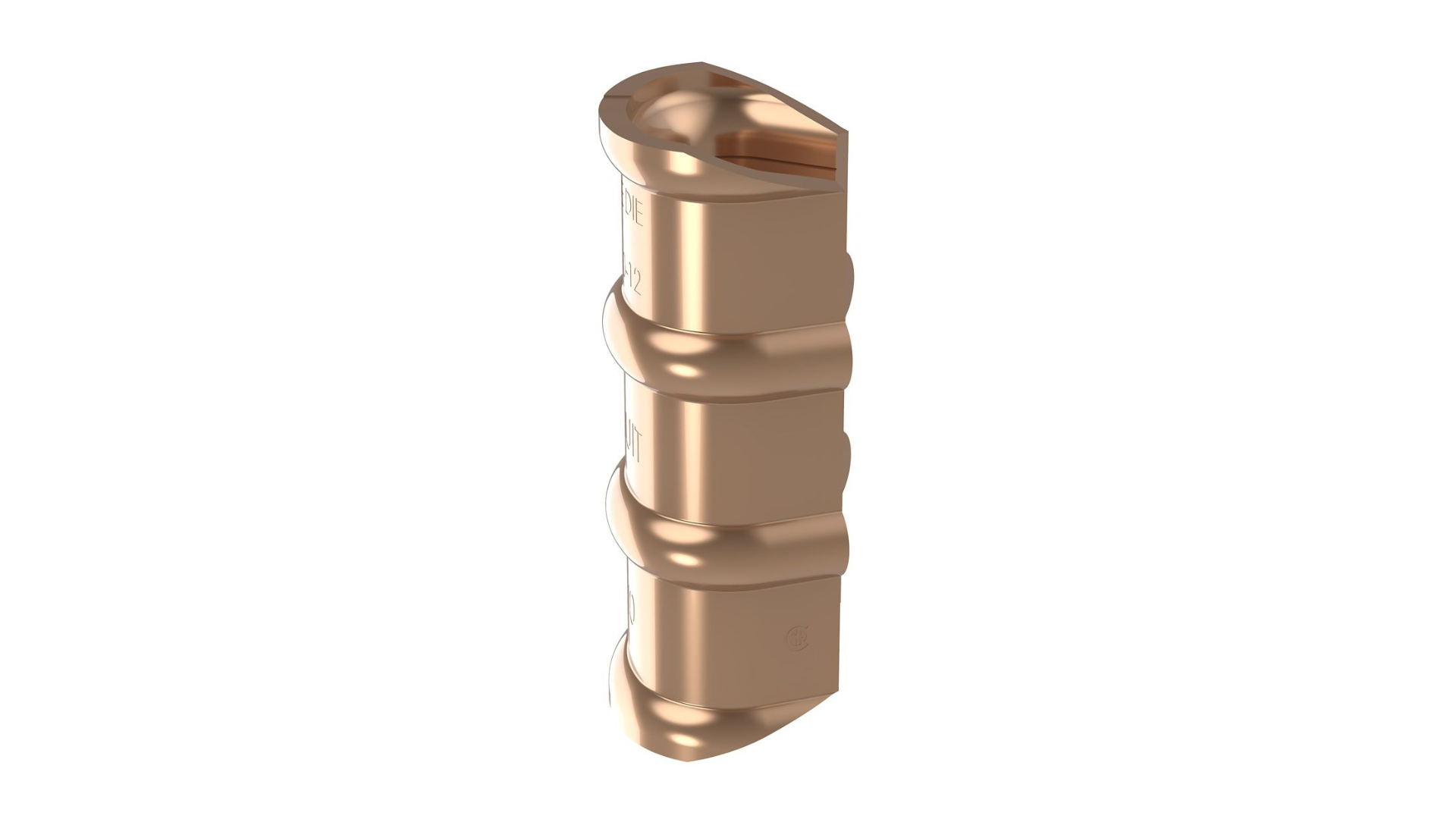

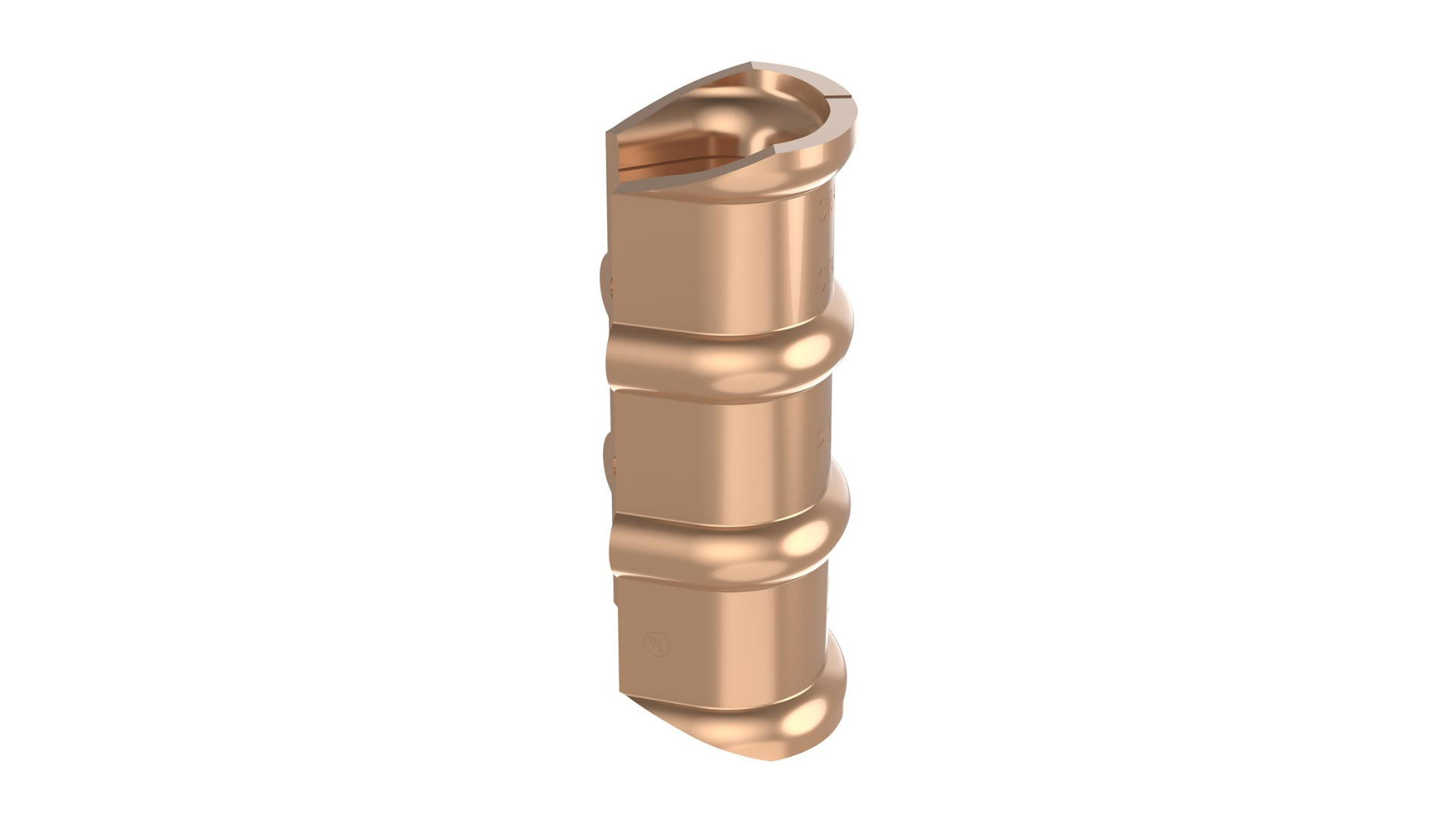

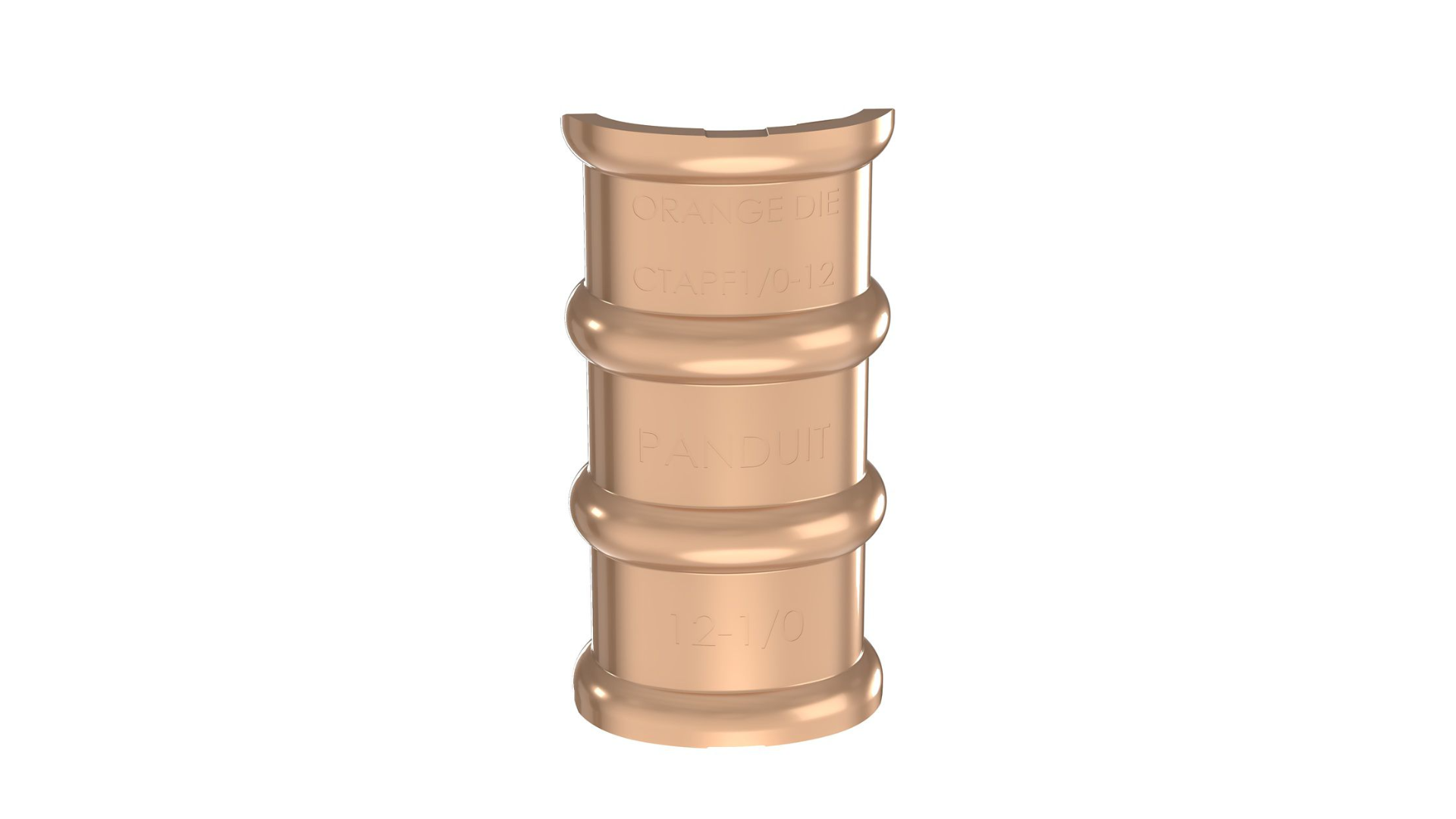

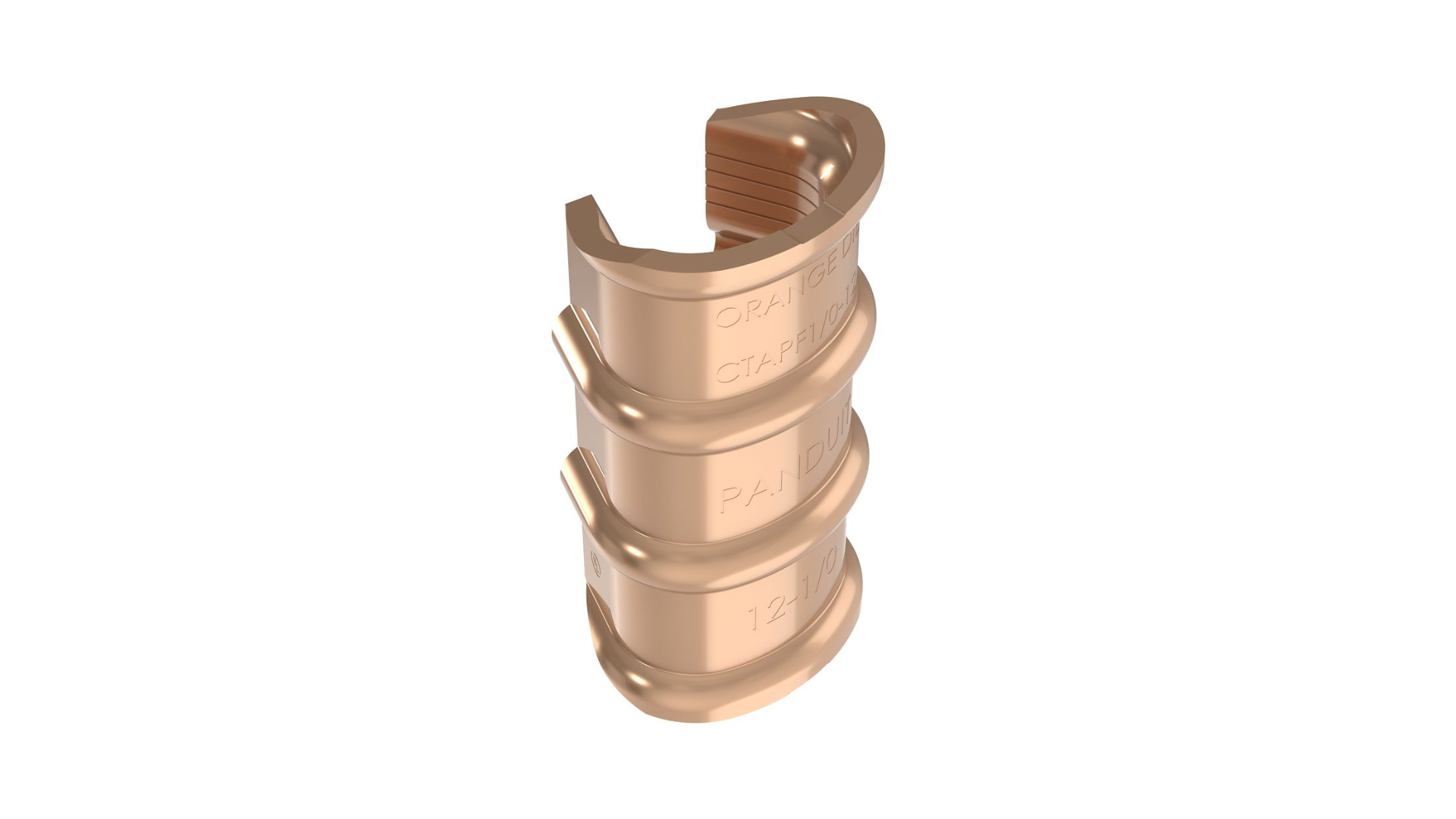

StructuredGround™ Comp. Tap, 1/0-12 PANDUIT CTAPF1/0-12-L (Pack of 50)

Product Information

Specification

Sub Brand	StructuredGround™
Maximum Tap Size (AWG STR)	4
Minimum Tap Size (AWG STR)	12
Maximum Run Size (AWG STR)	1/0
Minimum Run Size (AWG STR)	2
Overall Length (In.)	1.82
Overall Thickness (In.)	0.09
Overall Width (In.)	1.82
Panduit Die Index Number	P50M
Wire Strip Length (In.)	1 7/8
Inside Diameter (In.)	0.42
For Use With	AWG wire only
Standards Met	UL/CSA
Application	Utility/Ground Grid
Product Type	Compression Connectors - Taps
Material	Copper

StructuredGround™ Comp. Tap, 1/0-12 PANDUIT CTAPF1/0-12-L

Description:

The CTAPF1/0-12-L Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 35 kv and temperature rated 90°c when crimped with Panduit and specified competitor crimping tools and dies.
