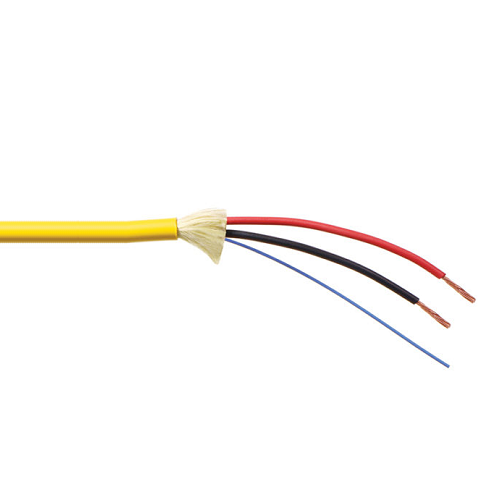

Slimline Riser Indoor/Outdoor PLTC Hybrid 4 Conductor 12 AWG Singlemode 2.0mm Tight Buffered Ultra-Fox Fiber Yellow Cable CE004DPFA9YR

Product Information

Specification

DESCRIPTION:

These small diameter hybrid powered fiber cables are thinner, lighter, and more flexible than other hybrid cables on the market. Perfect for remotely powered Passive Optical LAN installations, security cameras, and wireless access points, the Slimline Hybrid Powered Fiber Cable offers the convenience of remote power and the data rates of fiber optics all in one cable that can be installed indoors, outdoors, and in cable trays.

APPLICATIONS:

• Specifically designed for indoor/outdoor installations that utilize a centralized power supply to remote power and devices, thus eliminating the need to provide local AC power to each location.
• Two copper wires provide power from a centralized power supply to end devices while fiber optic elements provide bi-directional data paths through the cable.
• Hybrid fiber/copper cables are designed for use in wet locations on Class 3 power-limited circuits and Power Limited Tray Cable(PLTC_ circuits as described in Article 725 of the National Electrical Code.
• Allows remote power over distances greater than the 100m limitation of traditional Power Over Ethernet (PoE)

STANDARDS:

• ICEA S-104-696
• ICEA S-120-742
• UL-13
• UL-444
• UL-1666
• NEC-725
• NEC-800

CHARACTERISTICS:

FEATURES:

• Various combinations of copper conductors and optical fibers in a single hybrid cable.
• Riser-rated construction is also PLTC rated, perfect for use in offices and industrial settings.
• PLTC rating allows the cable to be installed in cable trays
• 12, 14, 16, 18, 20, or 22 AWG wires available. Class-3 power limited, 300V rated wire insulation.
• Cables made with OCC's single-mode or multimode fiber types.
• Choice of 900μm buffered fibers or 900μm buffered fibers inside 2.0mm sub-units. The sub-units contain aramid yarn for a more robust strain relief when terminating the fiber into a connector and provide added protection in outdoor applications.
• Ultra-Fox tight buffered fiber.

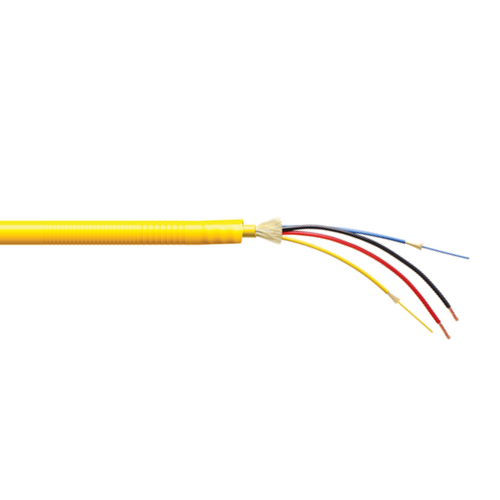

• Indoor/Outdoor Slimline is also available with Interlocking Aluminum Armor (ILA). ILA versions of the cable maintain the Riser and PLTC ratings.
