Single-mode Heat-Cure Connector SC Bulk 95-250-08-BP (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Number | 95-250-08-BP |
| EAN Code | 4056418201351 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Heat Cure Epoxy and Polish Connectors |
| Keyed (security) | No |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Housing Color | Blue |
| Ferrule Material | Ceramic |
| Connector Type | SC |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Ferrule Material | Ceramic |
| Keyed (security) | No |
| Durability | ≤ 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength | ≤ 0.2 dB change, 15 lb. FOTP-6 |
| Packaging | Bulk Pack |
| Package Contents | "100 connectors, SC" |
| Units per Delivery | 100/1 |

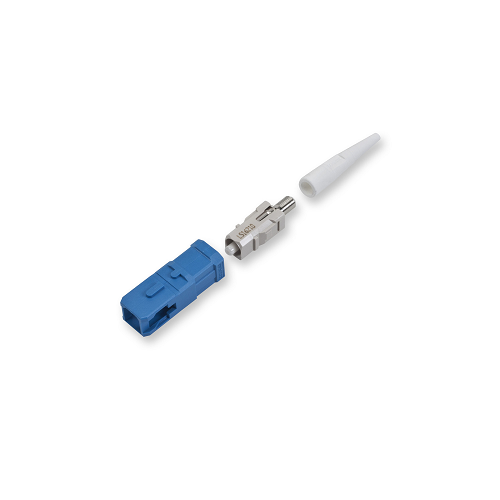

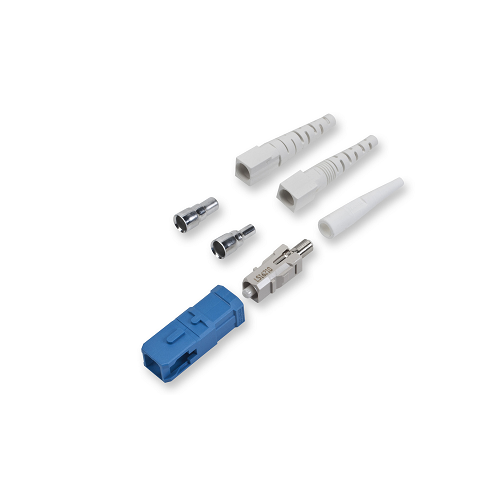

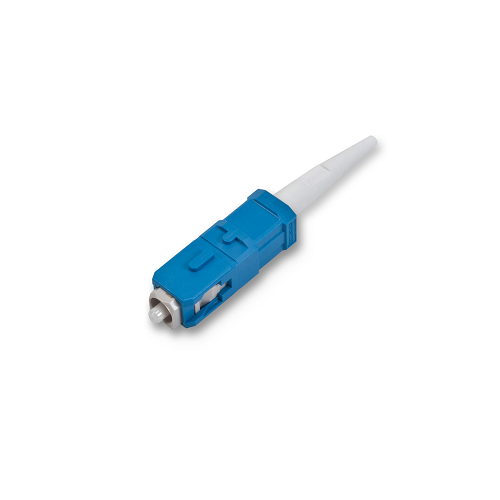

Single-mode Heat-Cure Connector SC Bulk 95-250-08-BP
Description:
Corning offers a complete line of heat-cure, epoxy-andpolish connectors for the flexibility to meet any factory termination need. SC connectors are available for both single-mode and multimode applications, and with tuned Single-mode ferrules for the ultimate in performance. Each connector meets FOCIS and TIA/EIA-568-B.3 standards and ships pre-assembled from the factory to reduce installation time. Zirconia ferrules with preradiused end faces allow for physical contact polishing supporting super or ultra PC performance (SPC or UPC).
Feature/Benefits:
Reduces installation time
➼ Zirconia ceramic ferrules with preradiused end faces
Allow for physical contact polishing for APC
➼ Available with tuned ferrules
Maximum performance
Download PDF Spec Sheet
