Single Fibers 250 to 900 µm Coating 125 µm Cladding RFCCL
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Applicable Fiber |
Standard silica optical fiber
|
| Fiber Count |
Single Fiber
|
| Coating Diameter |
250-900µm
|
| Cladding Diameter |
125 µm
|
| Cleave Length |
10 - 16mm
|
| Cleave Angle Capability |
Average 1˚
|
| Dimensions (W x D x H) |
90mm x 58mm x 58mm (3.5" x 2.9" x 2.9")
|
| Weight |
276 g (0.6 lbs)
|
| Part Number | RFCCL |
|---|
DESCRIPTION:

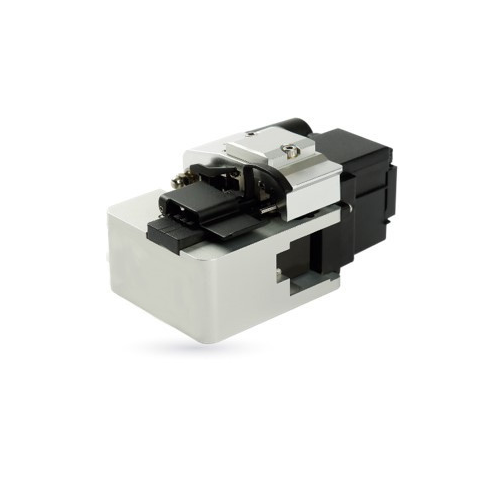

RFCCL fiber optic cleaver provides a high quality cleave at an economical price. Designed for cleaving single fibers, this cleaver is best suited for the installation of field installable connectors and splicing. The RFCCL is rugged yet designed to reduce installation time with less manual intervention and offers longer-life, circular auto-rotating blade for cleaving operation in one single step. The attached scrap collector automatically rolls the fiber scrap into the bin while the fiber is being cleaved.
FEATURES:
• Dedicated for single fiber cleaving
• Simple and single-step operation
• Blade life up to 75,000 cleaves
• Auto rotating blade
• Equipped with fiber scrap collector
Download PDF Spec Sheet
