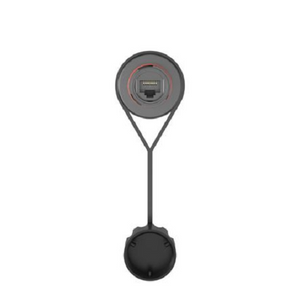

Shielded Bulkhead Coupler Black IAEBHC6XS
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• A Shielded Bulkhead Coupler is a device used in electrical and electronic systems to provide a connection between two cables or wires while maintaining shielding integrity.
• The primary function of a Shielded Bulkhead Coupler is to extend or connect shielded cables or wires through a barrier, such as a wall or a panel, while preserving the shielding effectiveness of the cables.
• These couplers typically consist of a metal housing or enclosure that provides electromagnetic shielding. The interior contains connectors or terminals for attaching cables on either side of the barrier.
• Shielded Bulkhead Couplers are commonly used in various industries, including telecommunications, aerospace, industrial automation, and data centers. They are often employed in applications where reliable signal transmission is critical, such as in high-speed data networks, instrumentation systems, and control panels.
Also Known As:
Bulkhead Feedthrough, Panel-Mounted Coupler, Shielded Pass-Through Connector, EMI/RFI Shielded Bulkhead Adapter, Panel Interface Connector (PIC), Shielded Cable Gland, Shielded Feedthrough Connector, Bulkhead Connector, EMC Bulkhead Coupler, Panel-Mounted Feedthrough Connector.
Specification:
| Product Type | Shielded Bulkhead Coupler |
| Color | Black |
| Height | 5.37 In |
| Depth | 1.67 In |
| Width | 1.49 In |
| Termination Style | Coupler |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Channel and Category 6A and ISO11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Plug Meets IEC 60603-7, Industrial Bulkhead Connection Protects and Seals Connections against Dust and Water Immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Bulkhead Connection Rated IP65/ P67, Bulkhead Connection Rated UL Type 12, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, and RoHS Compliant |
| Part No. | IAEBHC6XS |
Features:
• Exceeds channel and component requirements of ANSI/TIA568.2-D category and ISO 11801 class E standards at swept frequencies for each performance category.
• Meets all ODVA Ethernet/IP electrical and mechanical performance requirements.
• Eliminates the potential for module rotation.
• Holds bulkhead safely and securely from inside of enclosure.
• Plug contact plated with 50 uin of gold.
• Provides positive reinforcement during mated condition, rated to 100 mating cycle.
• Maintains IP67 seal during unmated connection.
• Optimizes performance by reducing conductor untwist to less than 1/8 in.
• Speeds installation and places no impact on critical components for maximum reliability.
• Offers industry standard solution familiar to end users which speeds deployment.
• Termination cap is color coded for T568A and T568B wiring schemes.
