ADVANCED TOUCHSCREEN PANEL 320 X 240 PIXELS QVGA- 3.5" TFT - 96 MB - HMIGTO1310
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
|
Range of product
|
Harmony GTO
|
|
Manufacturer
|
Schneider Electric
|
|
Product type
|
Advanced touchscreen panel
|
|
Display color
|
65536 colors
|
|
Display size
|
10.4 inch
|
|
Supply
|
External source
|
|
Operating system
|
Harmony
|
|
Battery type
|
Lithium battery for internal RAM, autonomy
|
|
Terminal type
|
Touchscreen display
|
|
Display type
|
Backlit colour TFT LCD
|
|
Display resolution
|
320 x 240 pixels QVGA
|
|
Touch sensitive zone
|
1024 x 1024
|
|
Touch panel
|
Resistive film
|
|
Brightness
|
16 levels - control by touch panel
|
|
Character font
|
Chinese (simplified Chinese)
Korean Taiwanese (traditional Chinese) Japanese (ANK, Kanji) ASCII (European characters) |
|
[Us] rated supply voltage
|
24 V DC
|
|
Supply voltage limits
|
19.2...28.8 V
|
|
Inrush current
|
<= 30 A
|
|
Power consumption in W
|
<= 17 W
|
|
Software designation
|
Vijeo Designer configuration software >= V6.1
|
|
Memory description
|
96 MB flash (EPROM)
|
|
Data backed up
|
512 kB internal RAM (SRAM)
|
|
Data storage equipment
|
SD card <= 32 GB
|
|
Type of cooling
|
Natural convection
|
|
Part Number
|
HMIGTO1310
|
Description :-

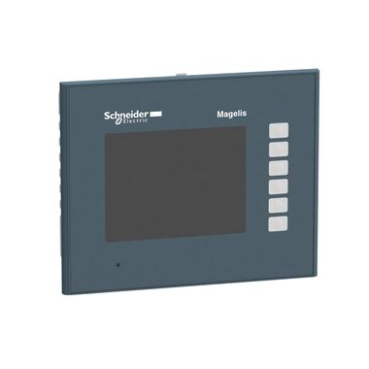

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display, 320 x 240 pixels (QVGA), 6 function keys and 96MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
Key Features :-
- ⦿ Display Size: Approximate diagonal screen size of 10.4 inches.
- ⦿ Resolution: Typically 640 x 480 pixels (VGA).
- ⦿ Touchscreen: Resistive analog touchscreen, offering precision and reliability.
- ⦿ Memory: Contains both RAM (for processing) and Flash (for storage). Exact capacities can be found in the product's technical specifications.
- ⦿ Ports: Usually includes USB ports (both Host and Device), an Ethernet port, Serial ports (e.g., RS-232/RS-485), and more.
- ⦿ Power Supply: Generally operates on 24V DC.
Download PDF Spec Sheet
