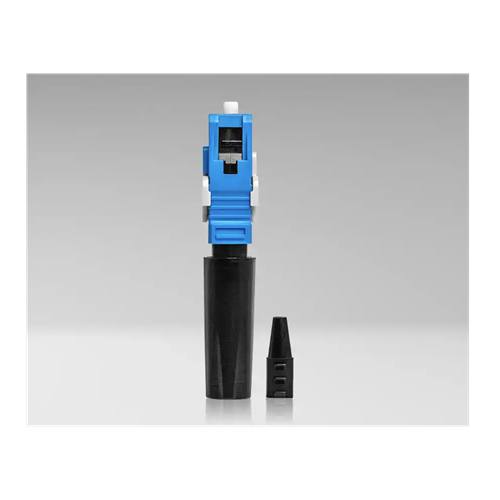

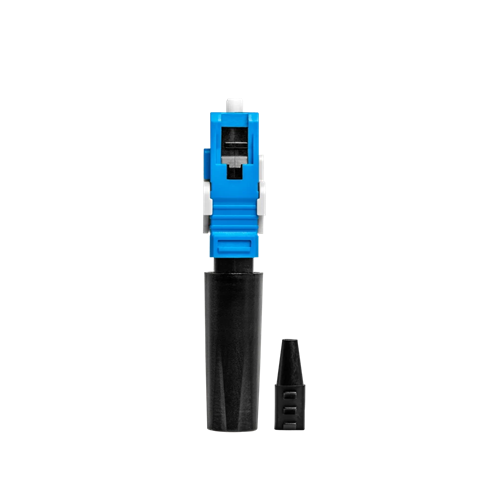

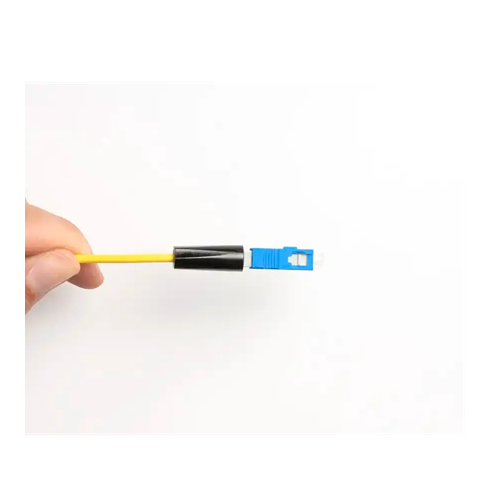

SC/UPC Rapid Linc Mechanical Connector NPNB_SRL-SCU/10 (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Connector Type | SC |
| Polish Type | UPC (Singlemode) |
| Fiber Type | Singlemode |
| Cable Types | 900 μm & 250 μm |
| Insertion Loss | AVG ≤0.3dB, MAX ≤0.5dB |
| Return Loss | UPC ≥50dB |
| Operating Temperature | -40/+85℃ |
| Standards | TIA/EIA 604-3 |
| Dimensions | 2” x 0.35” x 0.43” (5.08 cm x 0.89 cm x 1.09 cm) |

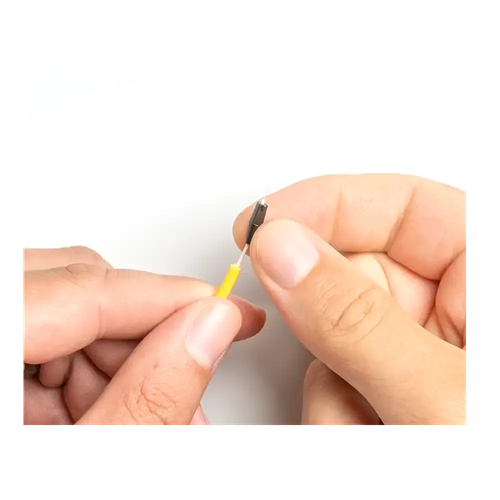

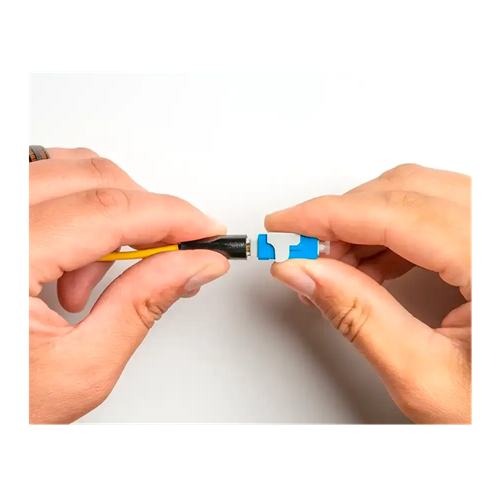

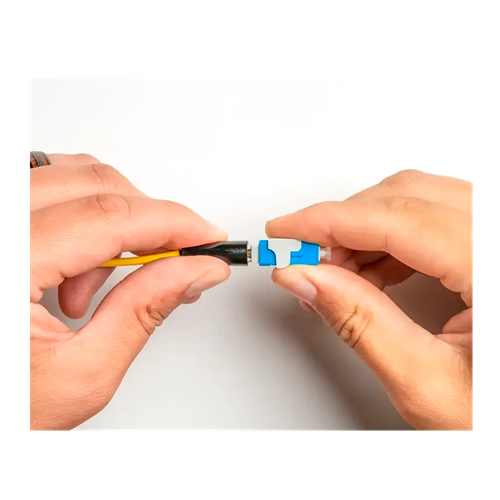

Rapid Linc SC/UPC Mechanical Connectors provide a reliable and efficient solution for terminating fiber optic cables with 250 µm and 900 µm coated fibers. Designed for quick field installation, these connectors simplify the termination process, helping save time and improve installation efficiency.
Features :
• SC/UPC Connector: Features an SC connector with Ultra Physical Contact (UPC) polishing for reliable optical connectivity.
• Fiber Compatibility: Designed for use with 250 µm and 900 µm coated fibers.
• Quick Installation: Simplifies field termination and helps reduce installation time.
• Reliable Performance: Designed to provide consistent fiber optic connections when properly installed.
• Convenient Packaging: Supplied in a pack of 10 mechanical connectors.
