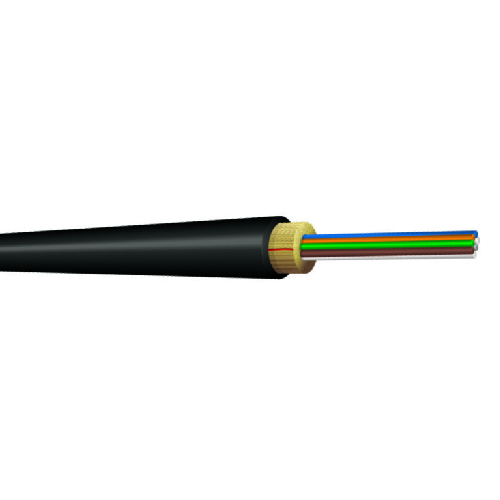

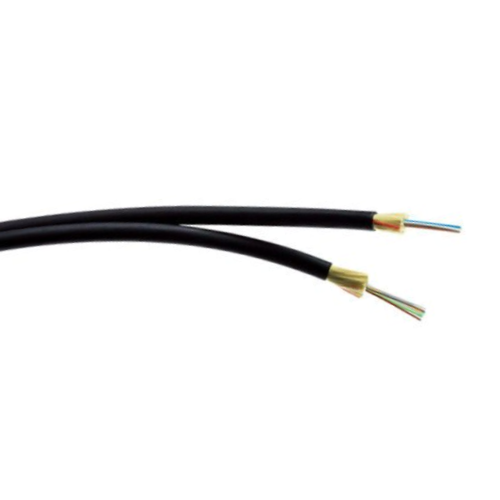

Round Messenger Series Ultra-Fox Plus With 900μm Tight Buffer 48 Fiber Polyolefin Single Mode Black Cable RM048XSLX5K
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Diameter | Weight | Max Rated Cable Tension | NESC Heavy Meters |
NESC Medium Meters |
NESC Light Meters |
|||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | (ft) | (ft) | (ft) |
| 48 | SLX - ITU-T G.652.D | RM048XSLX5K | 11.6 (0.5) |
108.0 (75.60) |
12,800 (2,880) |
61.0 (200.0) |
108.0 (355.0) |
168.0 (550.0) |
APPLICATIONS:
• Outdoor aerial installations along utility poles for cable television, telecom or other outside plant campus backbone applications without the need for cable lashing or grounding
STANDARDS:
Round Messenger tight-buffered fiber optic cables meet the functional requirements of the following standards:
• IEEE 1222
• GR-20-Core
• ICEA-S-87-640
• TIA-568
• TIA-598
CHARACTERISTICS:
| Characteristic | RM-Series Round Messenger |
| Operating Temp | -55°C to +85°C |
| Storage Temp | -70°C to +85°C |
| Install Temp | -30°C to +60°C |
| Crush Resist | 1800 N/cm |
| Impact Resist | 1500 impacts |
| Flex Resist | 2000 cycles |
FEATURES:
• Lightweight, all-dielectric self-supporting (ADSS) construction is ideal for use near electrical power lines and in areas of frequent lightning
• No messenger or lashing is required
• Round cable construction for minimum wind drag and ice buildup
• Aramid strength members reduce weight for longer span lengths
• Wide operating temperature range of -55°C to +85°C
• 900μm tight buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
• Standard with Ultra-Fox Plus fiber (500μm)
Download PDF Spec Sheet
