Resin Kit Inline Joint Kit Series 91-NBA 0

Product Information

Specification

Description :-

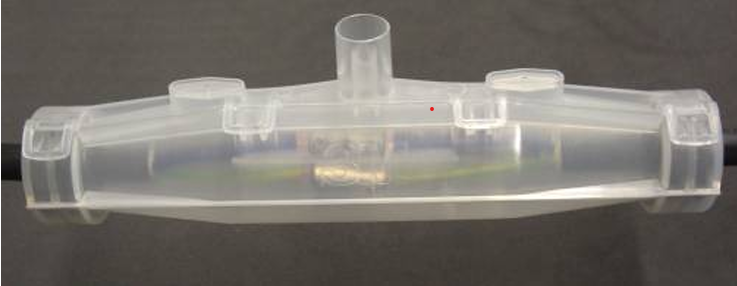

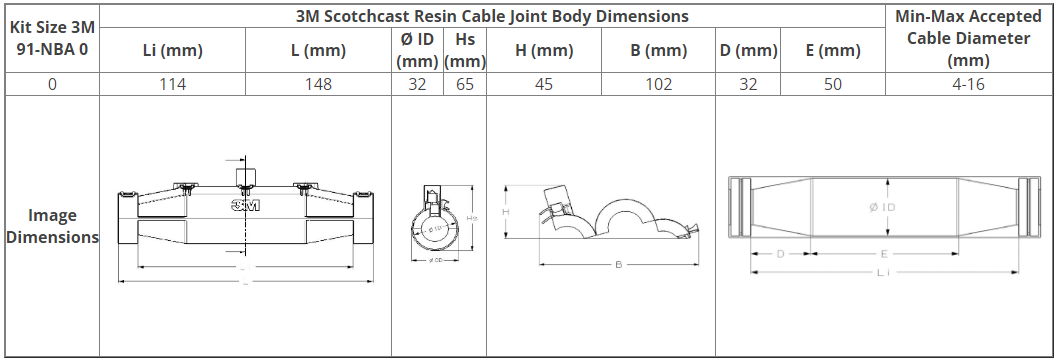

3MTM ScotchcastTM resin inline joint kit will be delivered with a one part translucent mould body for simple and easy handling. Distances inside the body can be checked easily. All necessary dimensions, like application range, cable preparation are given in the detailed instruction. The two foam sealing elements can be adapted to the required cable diameter by removing the pre-cut adapter rings.

The resin 470W is delivered in two chamber bag with integrated spout and aluminium Guard Bag for protection against humidity. The re-openable seam and integrated spout with a membrane provides a Closed, Mixing and Pouring system. After the seam of the two chamber bag is opened, the resin components can be mixed.

To pour the resin into the mould body, the spout is connected with the dome by turning 180°. While turning, the membrane is cut open to pour the resin. The Closed Mixing and Pouring System provides resin handling without any skin contact. For protection against pollution, a closure cap is applied onto the dome. After curing, the remaining resin in the bag can be disposed as house waste.

Application :-

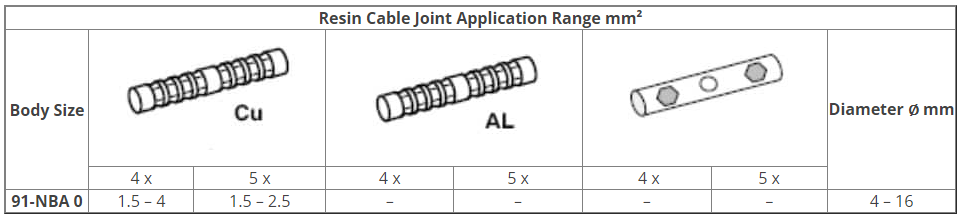

3M Scotchcast™ resin joint kits 91-NBA x are designed to be used for 1-core up to 5-core non shielded polymeric low voltage energy cables. The application incorporates electrical insulation and mechanical protection of joints with compression or mechanical connectors. They can be used for indoor and outdoor, underground and submerged applications.

Key Features :-

• • Resin 470W in transparent two chamber bags with integrated Closed Mixing and Pouring (CMP) system.
• • One part translucent Mould Body with Snap Fit closing system for quick and easy handling.
• • Pre cut foam sealing elements to provide reliable sealing to the Mould Body without tooling for all cable application diameters.
• • Closure cap to prevent any pollution.

Safety and Handling :-

3M provides its customers with a product specific Material Safety Data Sheet (MSDS) to cover potential health effects, safe handling, storage, use and disposal information. 3M strongly encourages its customers to review the MSDS on its products prior to their use.
