Product Information
Specification
|
Type |
Combustion Analyzer |
| Eligible for UEi Service+ | Yes |
| 3 Types of sensor protection | Yes |
| NOx filtered | Yes |
| Low flow detection | Yes |
| Over-range protection pump | Yes |
| Link to Wireless probes | Yes |
| Backlight | Yes |
| Temperature inputs | K-Type |
| Temperature differential | Yes |
| Wireless output | Yes |
| Protective boot or overmolding | Yes |
| Dual pressure input | Yes |
| Differential pressure | Yes |
| Preprogrammed fuels | 8 |
| Start time | 30 second |
| High altitude compensation | Yes |
| Memory positions | 45 |
| Magnetic mount | Yes |
| K-type input | Yes |
| Digital | Yes |
| Automatic fresh air purge | Yes |
| On-board plain paper printer | Yes |
| Number of display parameters | 6 line |
| IR printer link | Yes |
| Protective water trap | Yes |
| Part Number | C165+NKIT |

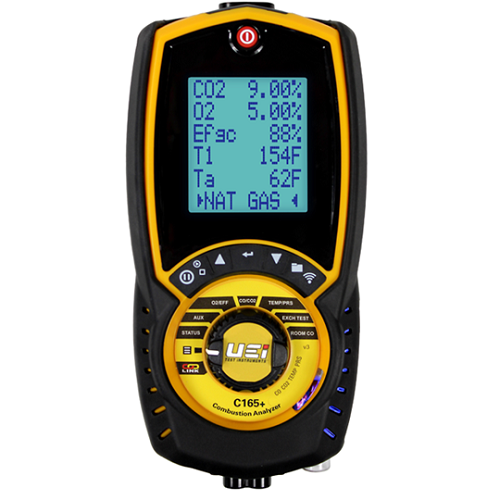

Residential/Commercial Combustion Analyzer Kit With NOx Sensor and Printer C165+NKIT
Description
Residential/Commercial Combustion Analyzer Kit with NOx Sensor and Printer
Backed. The C165+NKIT Residential/Commercial Combustion Analyzer is easy to use with a rugged design, multiple sensor protections, altitude compensation and differential pressure. Prints to included printer and wireless App. The new LINK feature connects the included wireless pipe clamp temperature probes and other optional probes to the C165+NKIT. Essential information for installing and maintaining gas appliances.
Features
• Up to 10-Year warranty with annual recertification

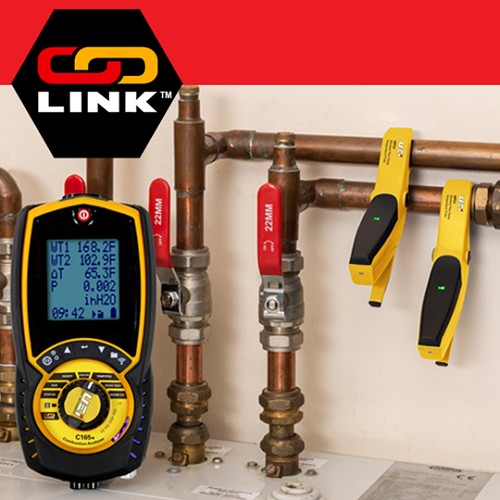

• LINK to wireless probes
• Wireless Flow and Return Probes
• NOx-filtered & H2-compensated CO sensor (10,000ppm range)
• Over-range protection pump
• NOx-filtered CO sensor
• Low Flow Detection to protect reading accuracy
• Compatible with DTHA2
• Room CO test
• Differential Pressure
• Heat Exchanger test
• Protective water trap
• Wireless connection to a Free Printer App
Standards
• IEC 61010 : IEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
• CE Conformity : Yes
• RoHS : Yes
• REACH compliant : Yes
• AHRI 1260 standard : Yes
• Certification : The C165+ is independently tested and certified to EN 50379, Parts 1-3 in accordance with the 1st German Federal Emission Control Ordinance (BlmSchV) EMC
• EMC : EN50270:2015
• Safety : EN61010-1:2010

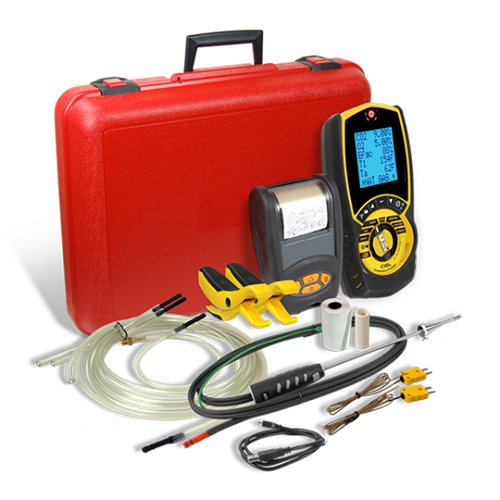

Includes
• Batteries : Rechargeable AA (3)
• Pouch/Cases : AC509
• Infrared Printer : IRP-2
• Flue Probe : CP2
• Printer Paper Roll : 16446
• USB Cable : AACA5
• Particle Filter : 17631
• K-Type Thermocouples : ATT29 (2)
• 11000 Tubing : Yes
• Wireless Pipe Clamp Probes : WPC2 (2)
Functions:
• CO : 10,000ppm (H2 Compensated)
• CO2 : 20%
• O2 : 21%
• NOx : 100ppm
• Flue temperature : 32˚ to 1112˚F
• Inlet temperature : 32˚ to 1112˚F
• Heat exchanger test : Yes
• Pressure : Yes
• Differential temperature : Yes
• K-type temperature range : -40˚ to 950˚F (-40˚ to 510˚C)
Download PDF Spec Sheet
