QWIKLUG 3 TERMINAL REPAIR LUGS 10 AWG - 4 FT LEADS W/ SPADES - QT2910

Product Information

Specification

Description:

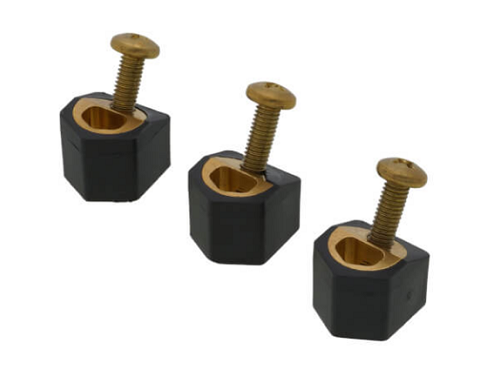

Tightens quickly from the front with a Phillips head screwdriver. Has a durable brass interior shielded by nylon exterior to prevent shorting.

Most technicians have encountered the problem of a compressor with pitted or severely corroded spade terminals. The start-up current surge of repeated hot summer cycling eventually destroys the spade connector, sometimes leaving nothing but a corroded round post.

Key Features:

1. Enables tight clean connections to damaged or corroded terminals
2. Fits all standard compressor terminals
3. Easily tightens from the front
4. Optional set screws for tight installations
5. Provides a durable brass connection, tested for more than 100,000 compressor starts
6. Fully insulated brass connector

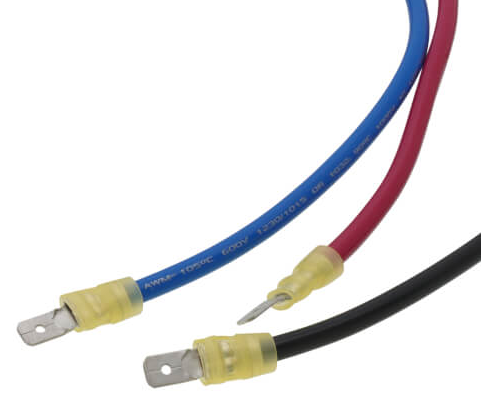

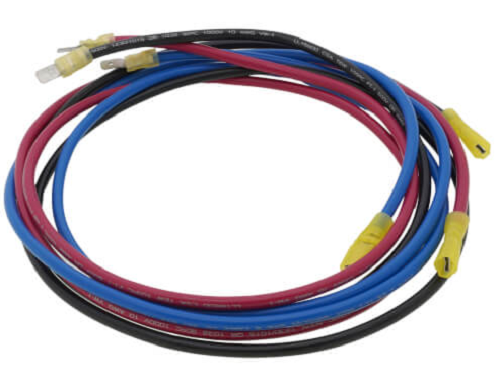

7. 10 AWG / 4 ft. Leads

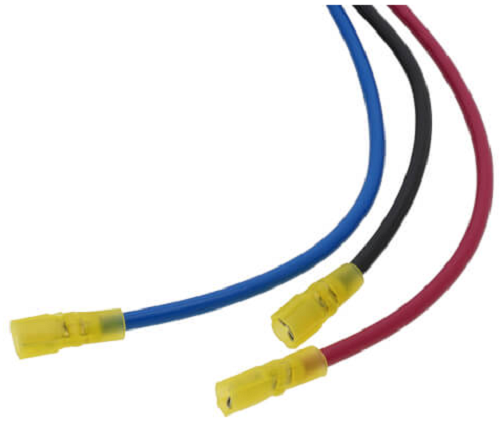

8. Fully insulated female connectors for connection directly to the contactor

Instructions:

• Disconnect power.
• Clean damaged or corroded terminals.
• Verify crimped connector is inserted into QwikLug body with spade pressed against the long flat side of the opening.
• Crimped connector fits between terminal and screw.

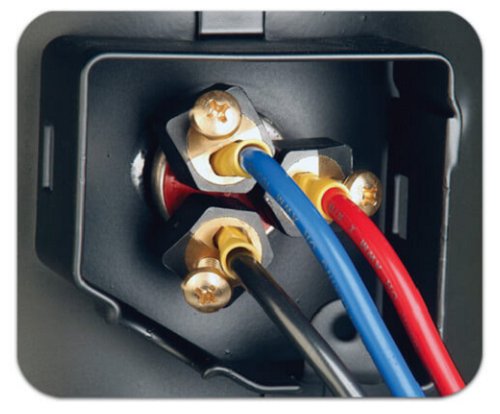

• Slide QwikLug over terminal and tighten screw with Phillips screwdriver.
