Quick Clip Insertion Tool JIC-950C
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Replacement Blade |
| UPC | 811490011991 |
| Block Type | 3-beam (112-type) and 4-beam (78-type) terminal blocks |
| Dimensions | 1.5 in x 0.5 in x 0.32 in |
| Part Number | JIC-950C |

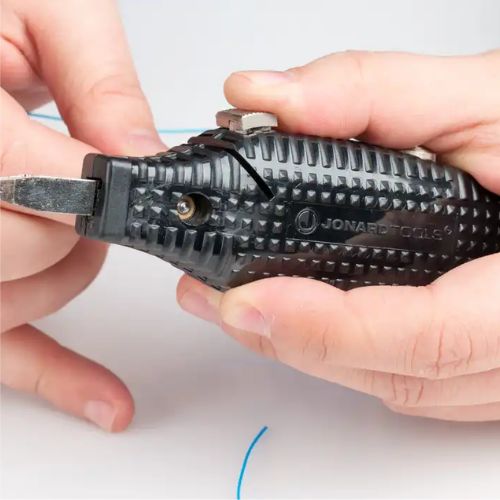

Quick Clip Insertion Tool
Description:
Designed for cutting and inserting 22 and 24 AWG wire, this multipurpose wire insertion tool provides all the essential functions needed for efficient wire installation.
Features:

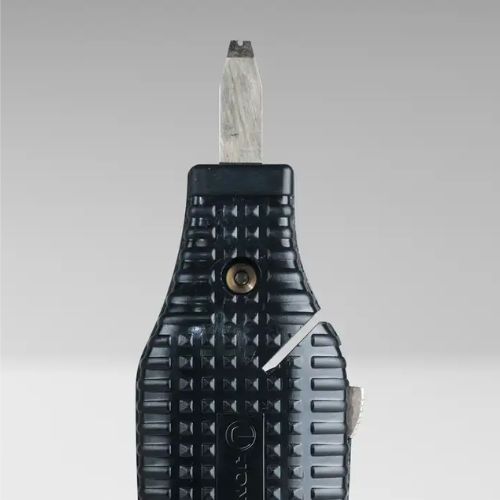

• Integrated Wire Cutter: Cleanly cuts 22 and 24 AWG (0.65 mm and 0.51 mm diameter) wire

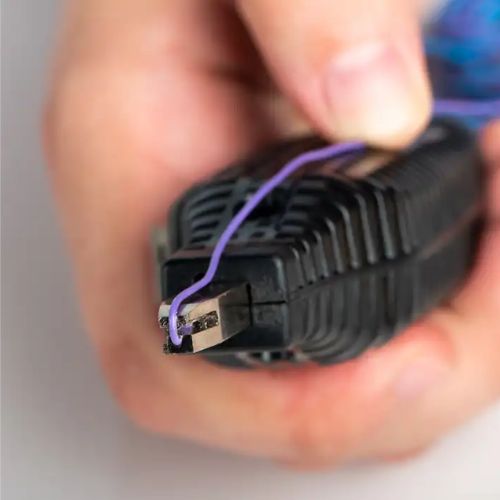

• Convenient Hook: Located on the back of the tool for easy jumper and back-tap removal

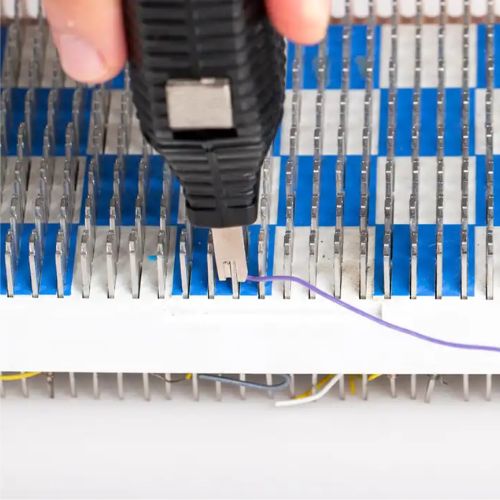

• Precision Bit: Inserts 22 and 24 AWG wire into the appropriate terminal block

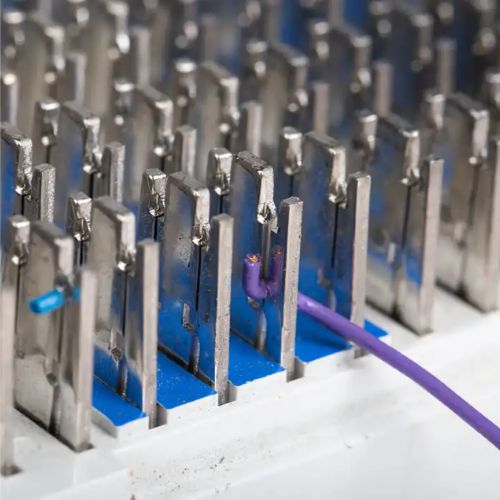

• Versatile Application: Ideal for use on 3-beam (112-type) and 4-beam (78-type) terminal blocks in Cosmic and Cosmic II distributing frames
Download PDF Spec Sheet
